HDMI Video Wall Processor, 4K HDMI Controller, 2x2, HDMI, 1X2, 1X4, 1x3, 2X1, 3x1, 4X1, Multi Screen Processor Splicer

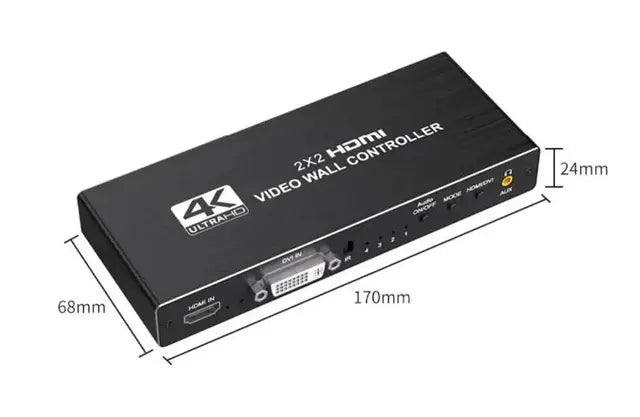

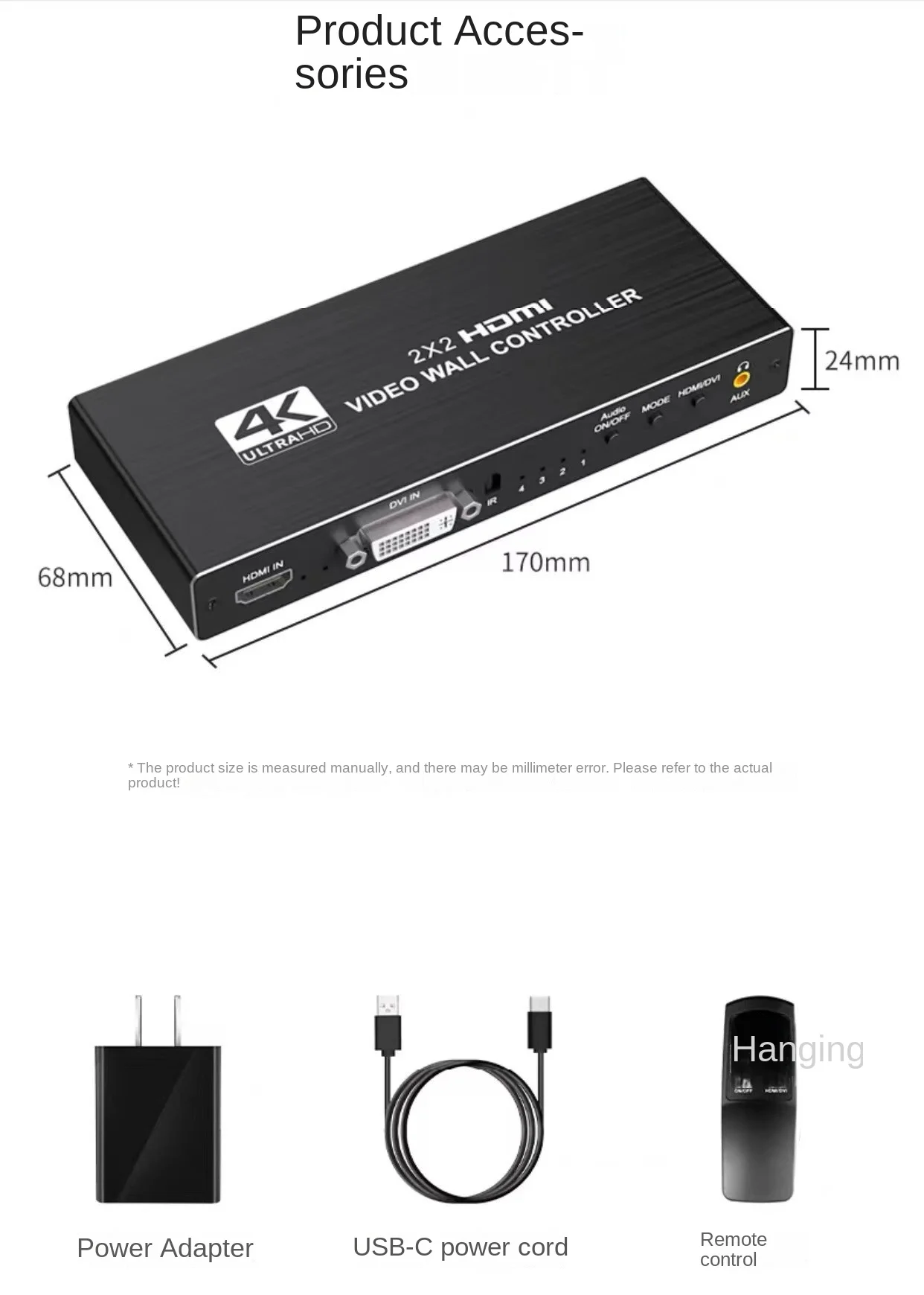

Body size: 170*68*24

Power interface: TYPE-C

Real-time image: HD-MI /DVI

Video output interface type: HD-MI2.0

Audio access: SPDIF

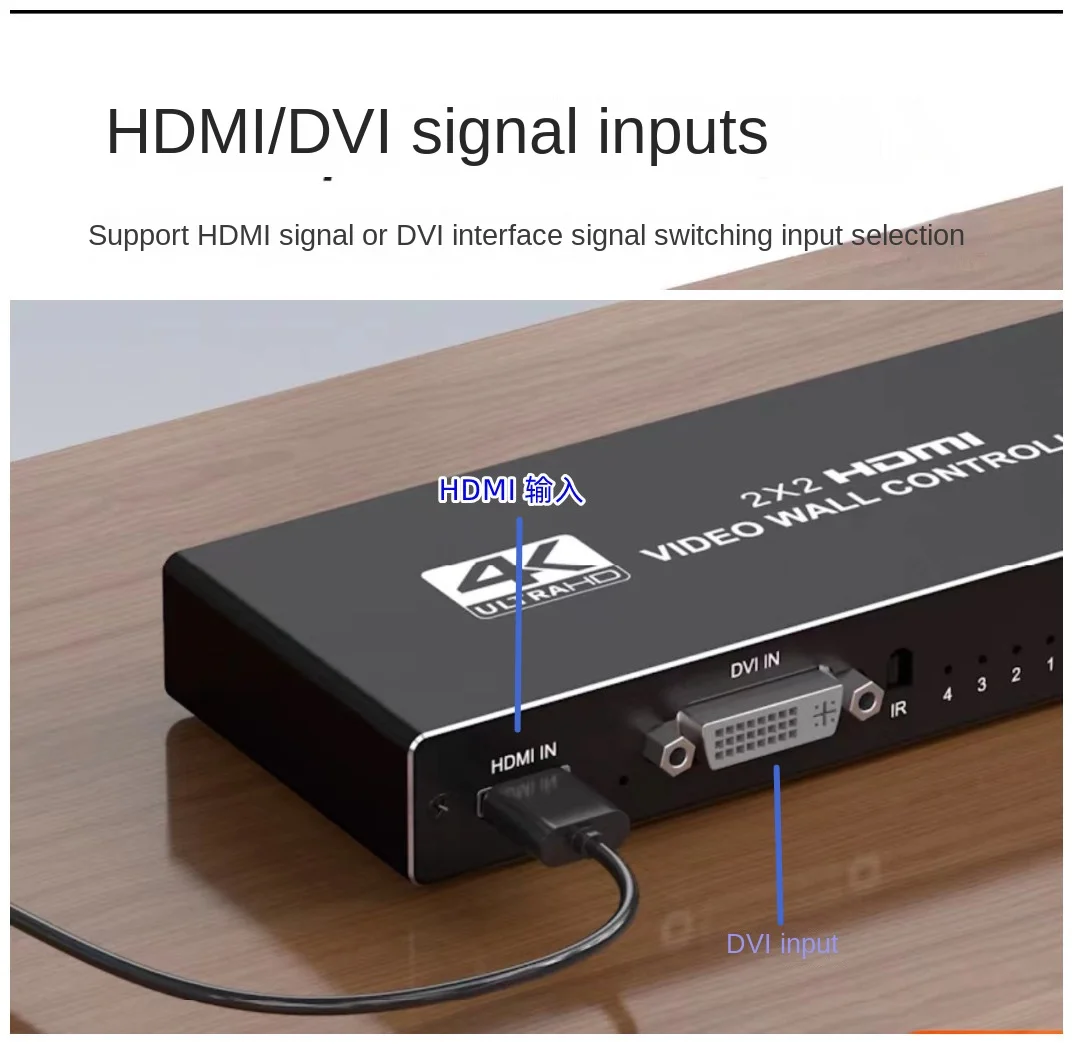

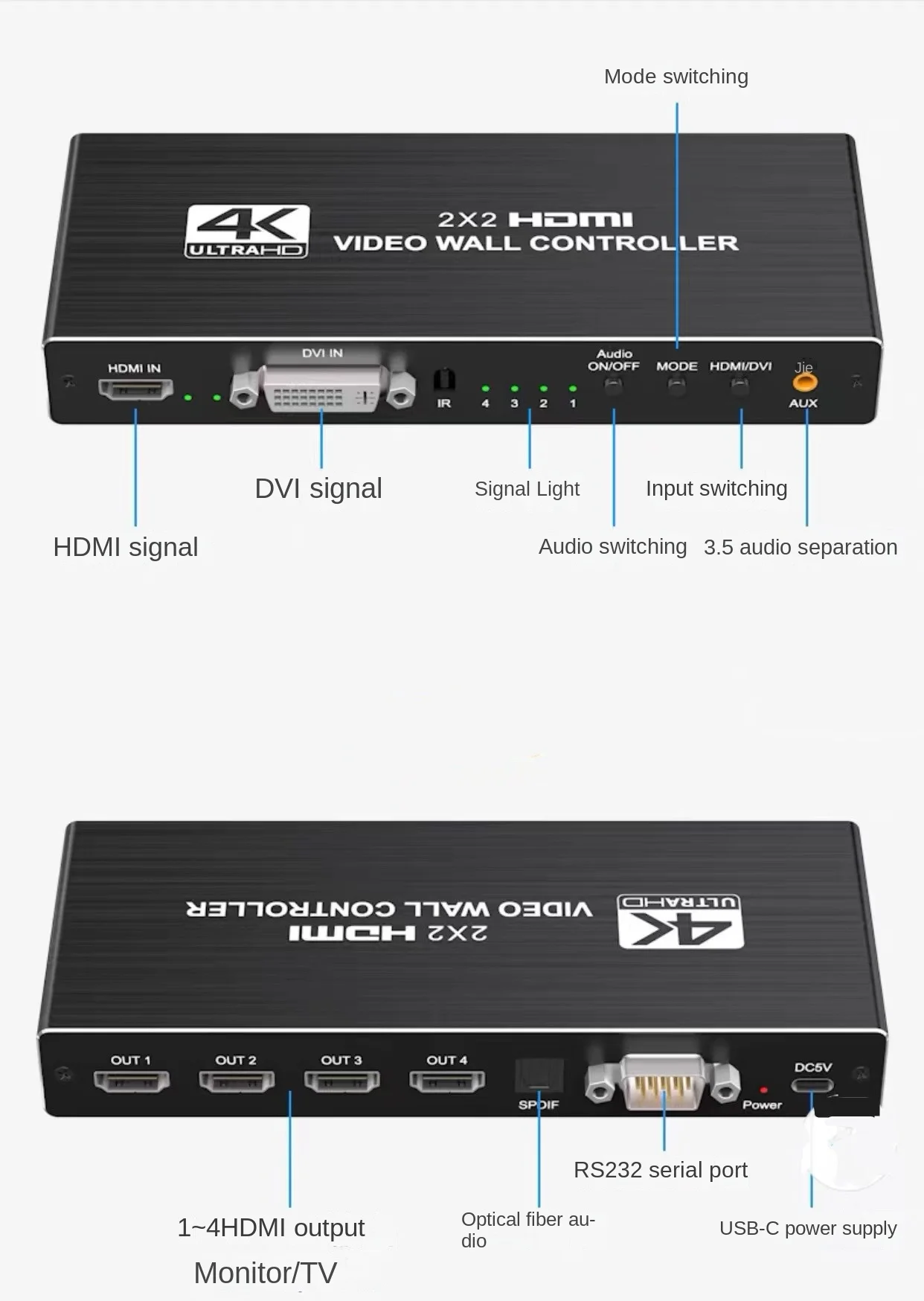

Video input interface type: DVI/HD-MI/RS232

Number of audio input interfaces: 2

Type: Splicing processor

Power supply voltage: 5V2A

Audio input interface type: SPDIF/3.5 audio.

Important note

1) 4K only refers to the signal from HD-MI inputs. It supports up to 4K 30Hz and 1080P 60Hz.

2)Pls use qualified HD-MI cable with all 19 pines wired and shielded to pair the source and display.

Most problems are caused by poor cables.

3) For a pleasant video experience, pls use professional video walls.

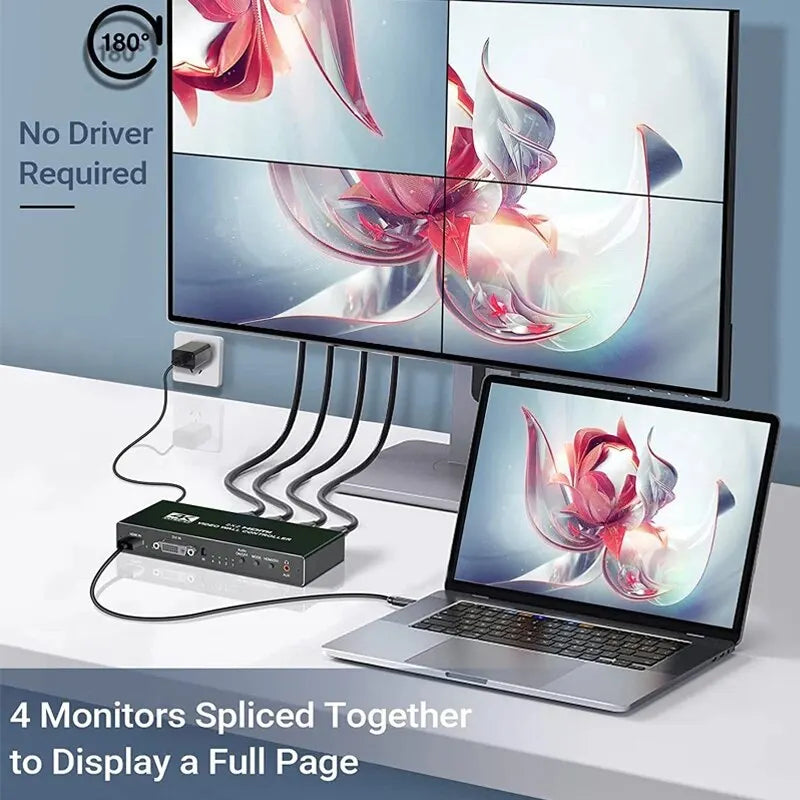

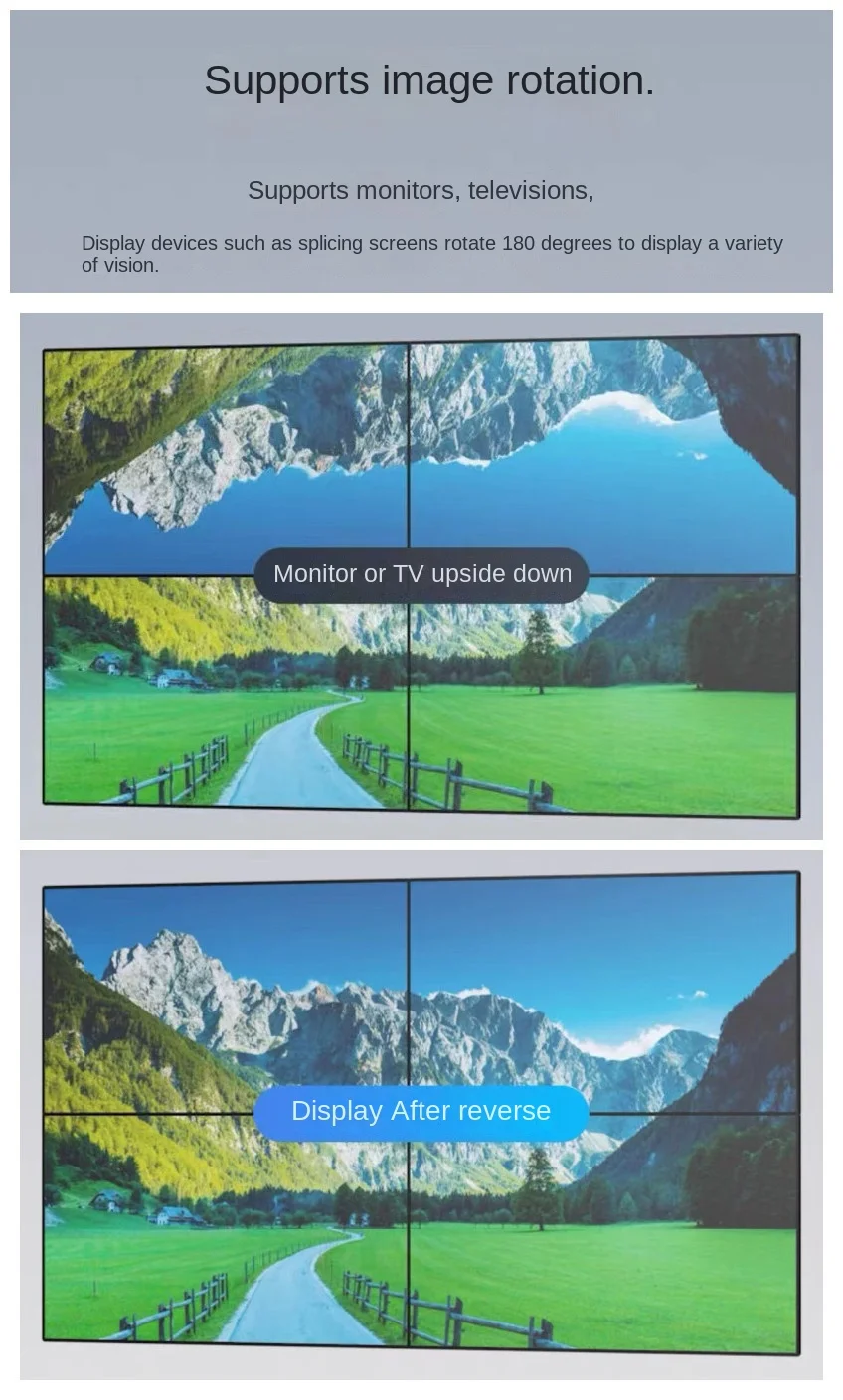

4) 180° rotation only works under 2X2 mode and 1080P resolutions.

5) Support 2CH PCM stereo audio only from Aux or Digital toslink port. And in some cases, when the input is 4K 30Hz, there may be no audio. Pls set the resolutions to 1080P.

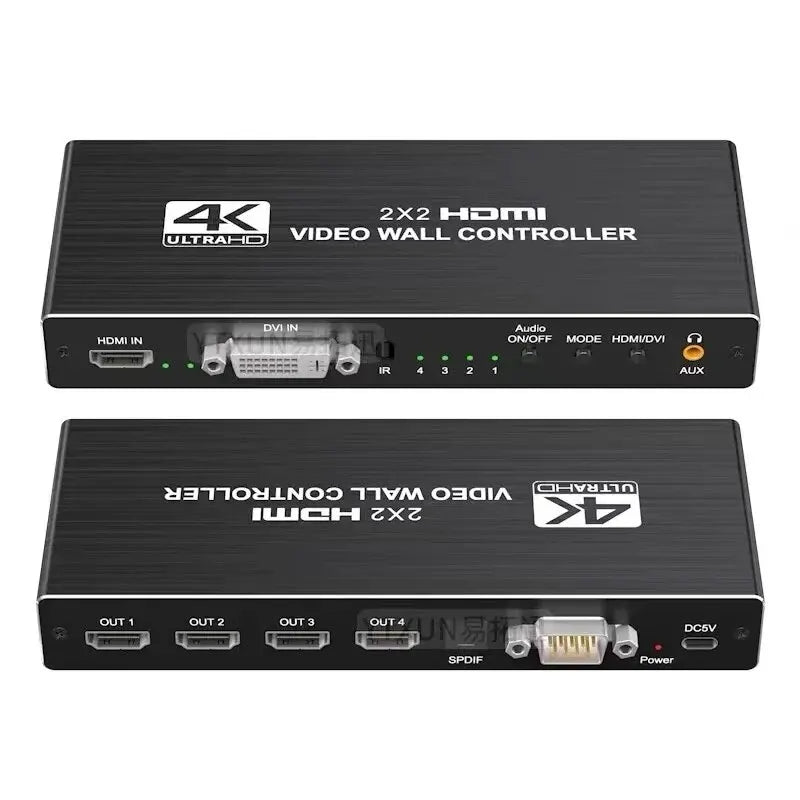

HD-MI Video Wall Controller

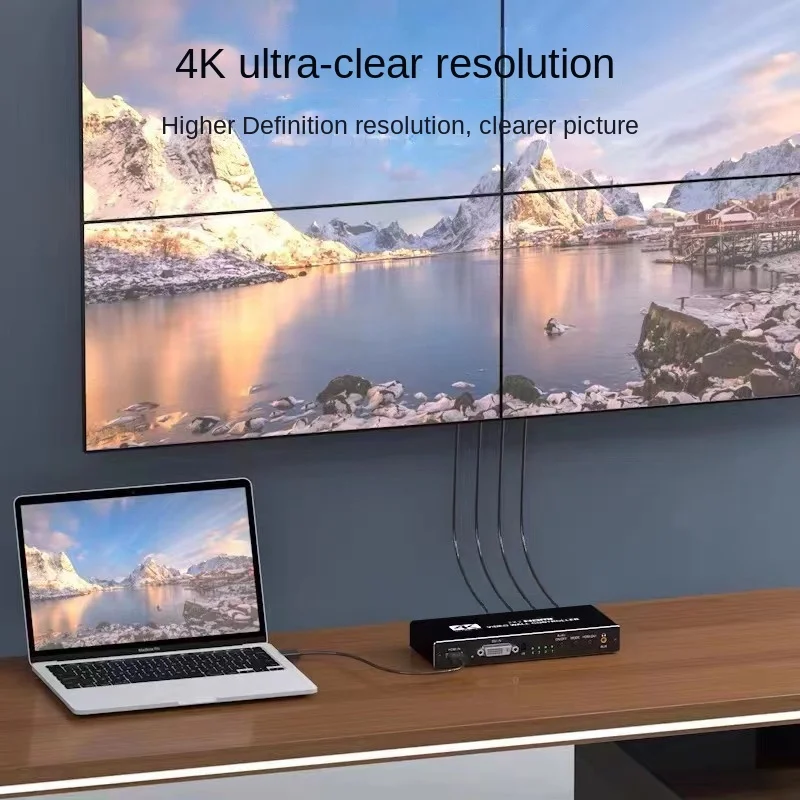

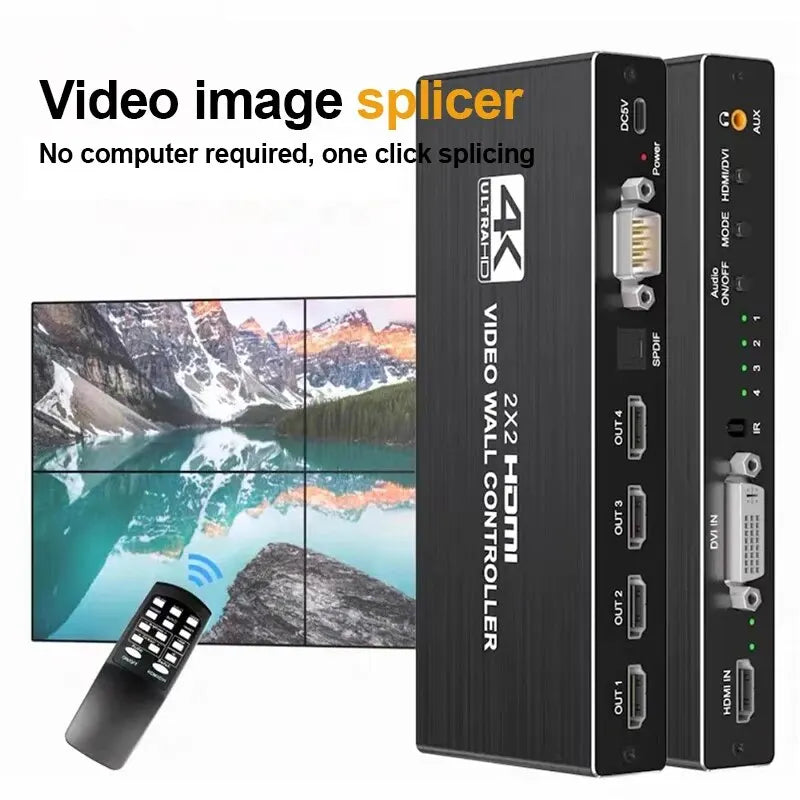

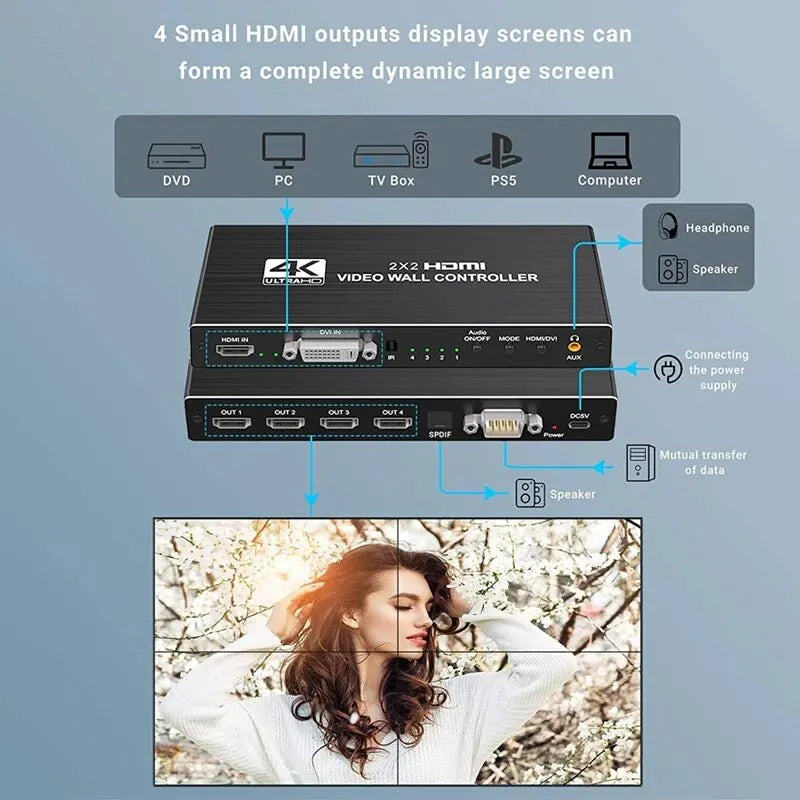

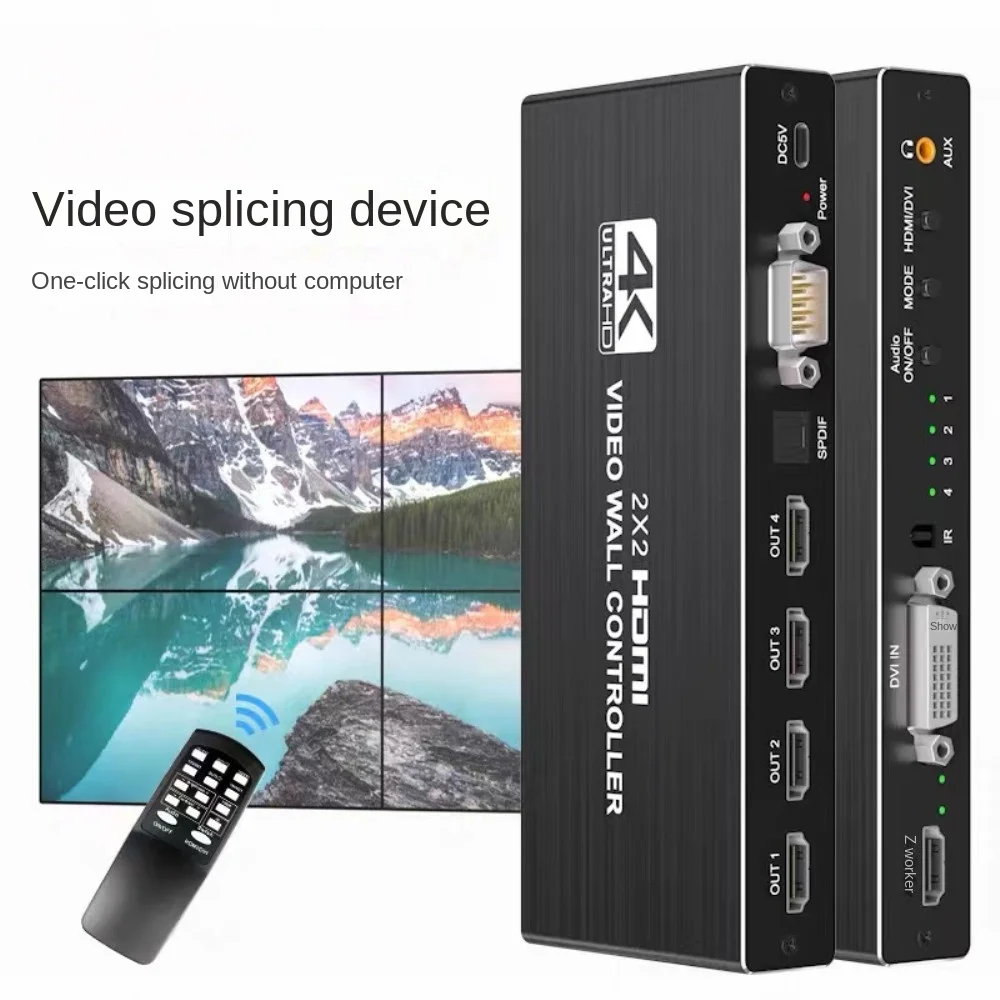

HD-MI TV wall processor can distribute one HD-MI or DVI input signal device (DVD, TV Box, Xbox, PS4, Computer etc.) to 4 HD-MI display screens simultaneously, which through LCD splicing screens can form a large full dynamic video wall and digital signage displays, bring you amazing visual experience.

Screen resolution 1080p HD

This 4K HD-MI LED video wall controller is compliant with HDCP 1.4 and HD-MI 1.4, HD-MI & DVI input can support resolution up to 4K@30Hz, including 3840x2160P@24/30Hz, 1920x 1080P@25/30/50/60Hz; HD-MI output resolution can support 1920x 1080P@60Hz.

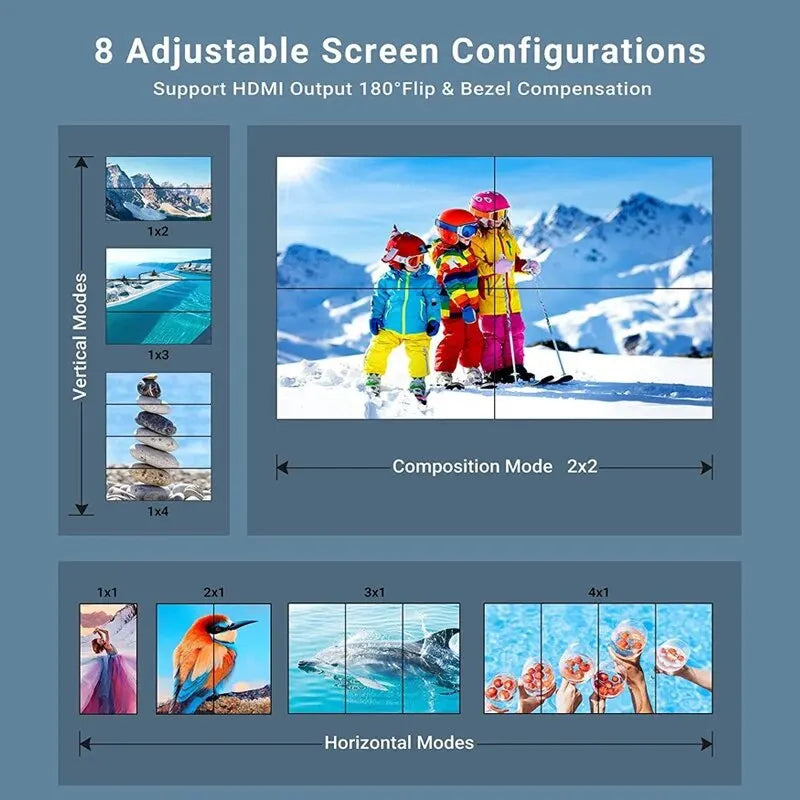

8 adjustable display modes

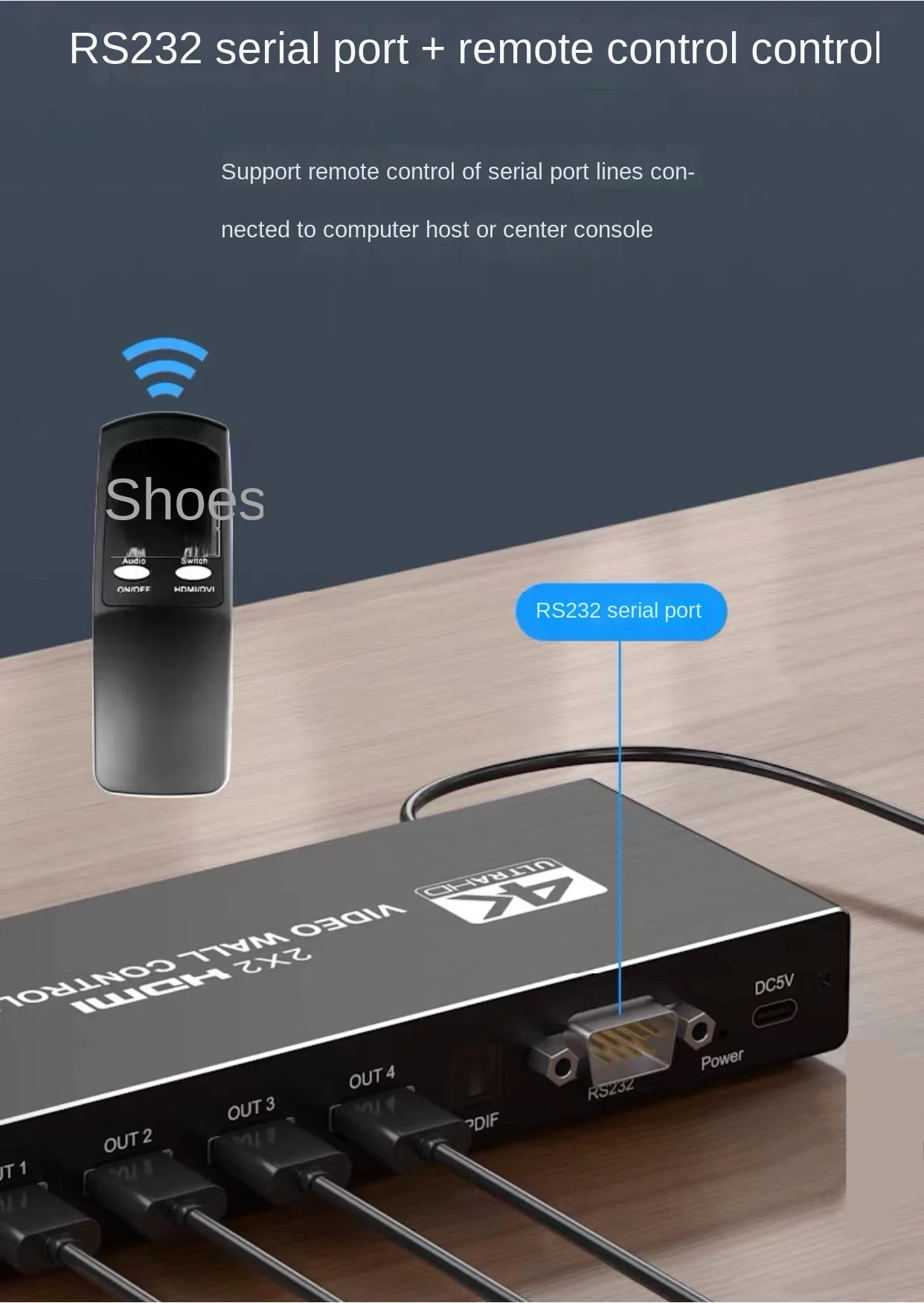

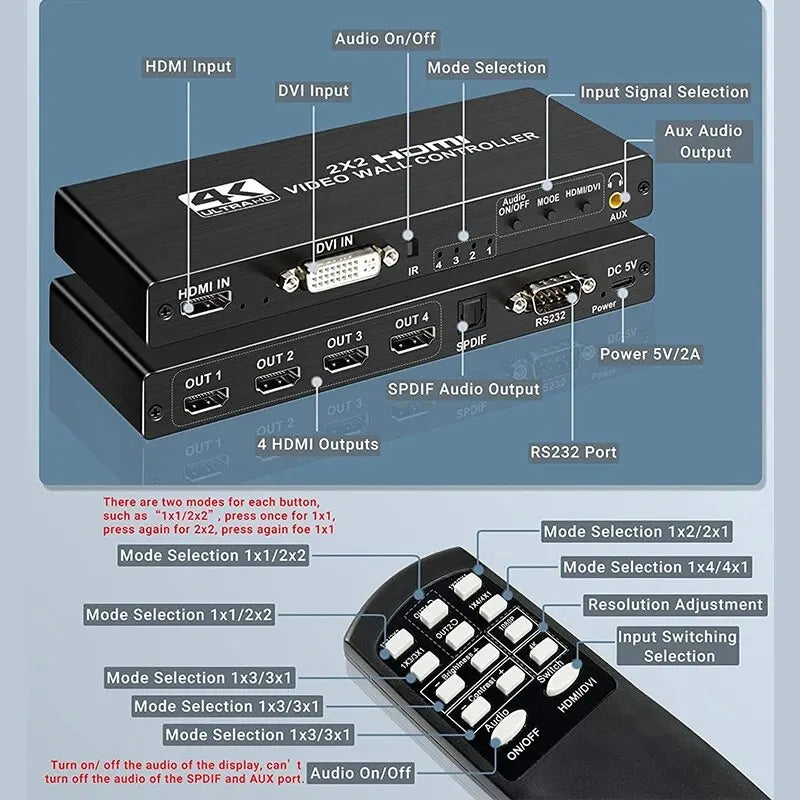

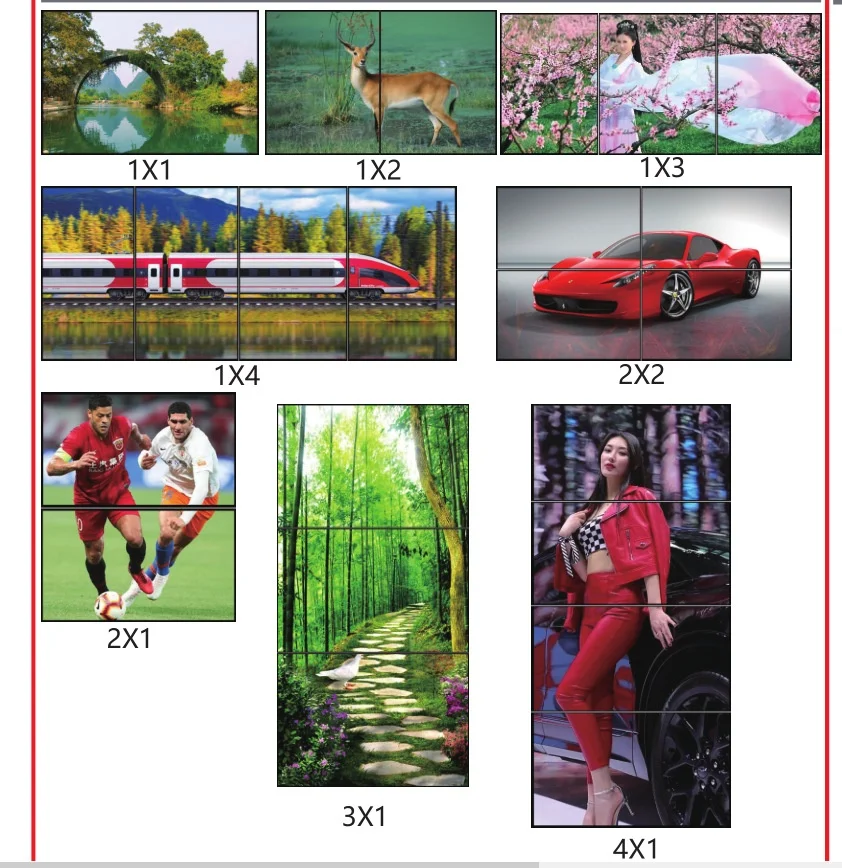

This 2x2 HD-MI video image processor can connect up to 4 LCD TVs or other monitors, which can support multiple display modes, such as 2x2, 1x1, 1x2, 1x3, 1x4, 4x1, 3x1, 2x1. All these modes provide varied splicing options, can easily switch modes via IR remote control without getting up or pressing the "Switch" key on the TV wall controller. Also support advanced RS 232 remote control.

Image splicer * 1

Instructions * 1

TYPE-C * 1

5V2A Power Supply * 1

Remote control * 1

Notes:

1. Pictures are for reference only. Due to photographic limitations and

Unavoidable differences in monitor settings, the colors shown in

Photos may not match 100% of the colors of the item itself.

2. Due to manual measurement, there may be 1-2cm difference in size.
