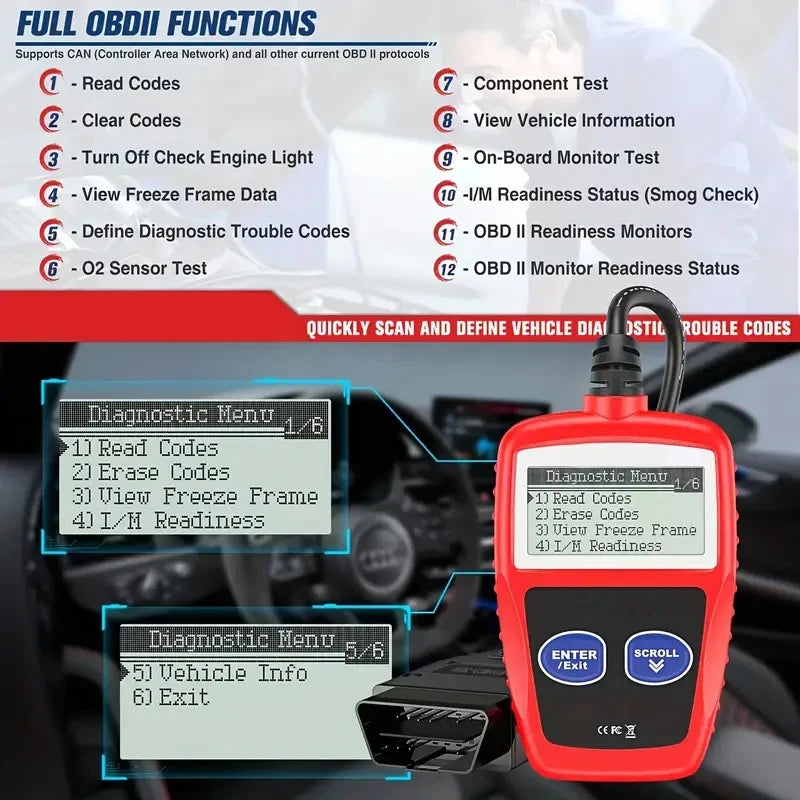

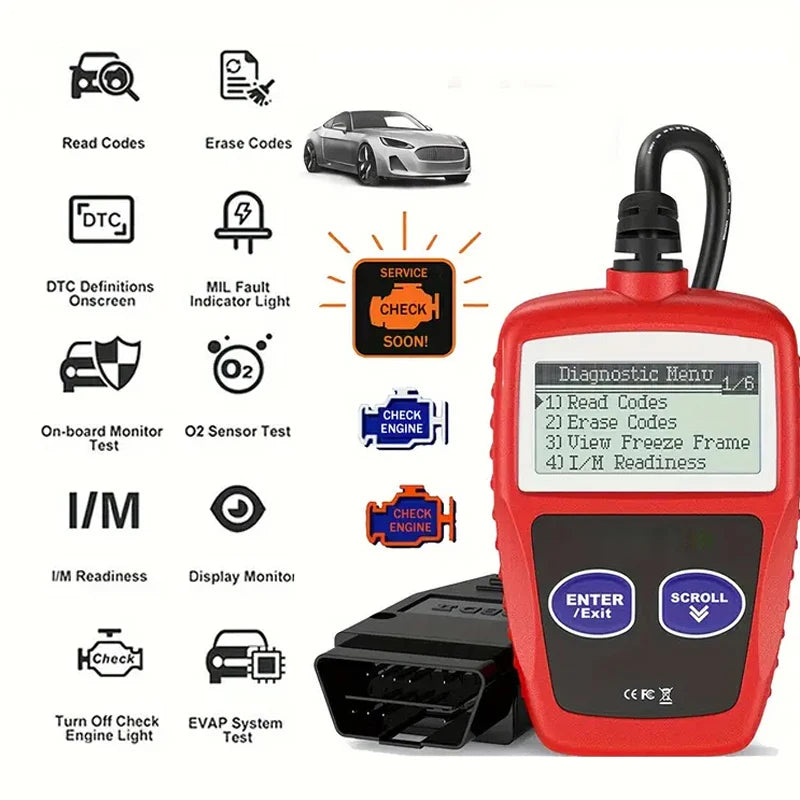

Features:

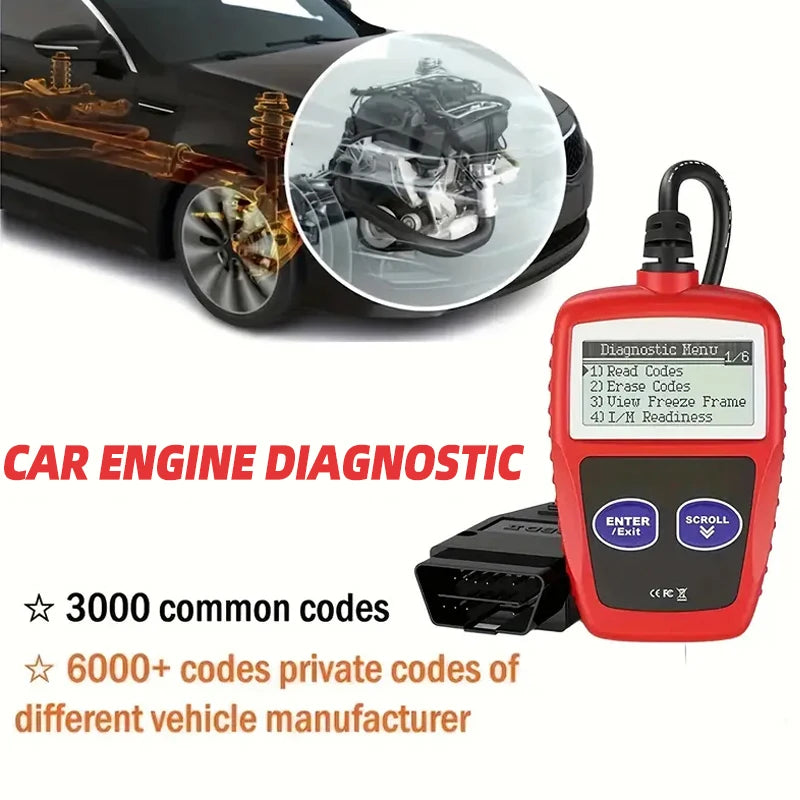

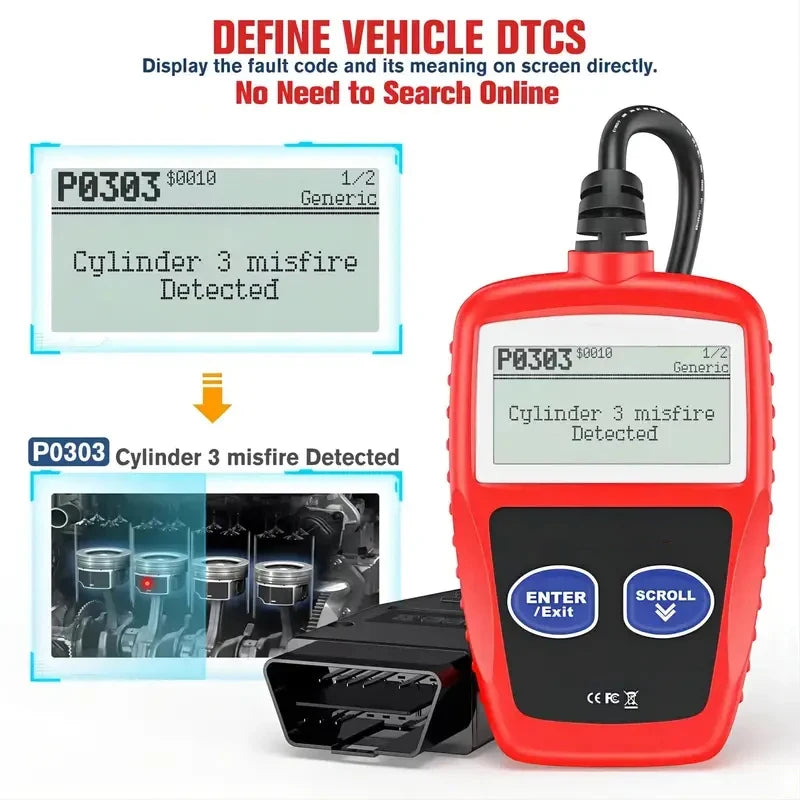

1. Retrieves generic and manufacturer specific Diagnostic Trouble Codes (DTC), includes definitions lookup software on CD and displays DTC definitions on screen.

2. Features a large easy-to-read backlit LCD screen, multilingual menu and DTC definitions and standard 16-pin OBD-II connector; no additional cables are needed.

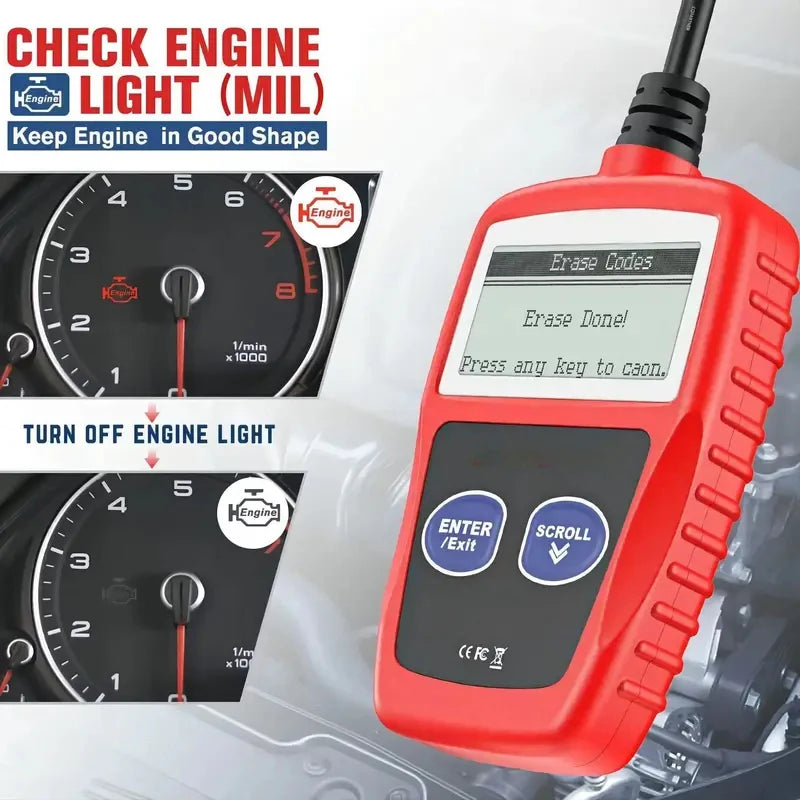

3. Views freeze frame data, displays monitor and I/M readiness status, turns off Check Engine Light (MIL), clears codes and resets monitors.

4. Supports the CAN (Controller Area Network) protols and all other current OBD-II protocols.

5. Works with all OBD-II compliant U.S., European and Asian vehicles (OBD-II is standard on all cars sold in U.S. post-1996).

Specifications

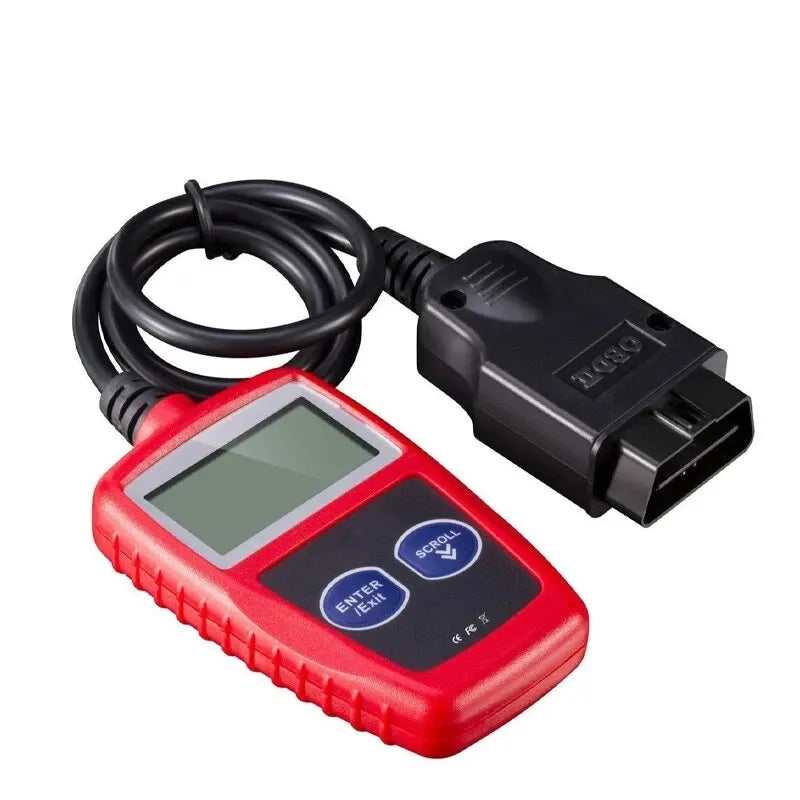

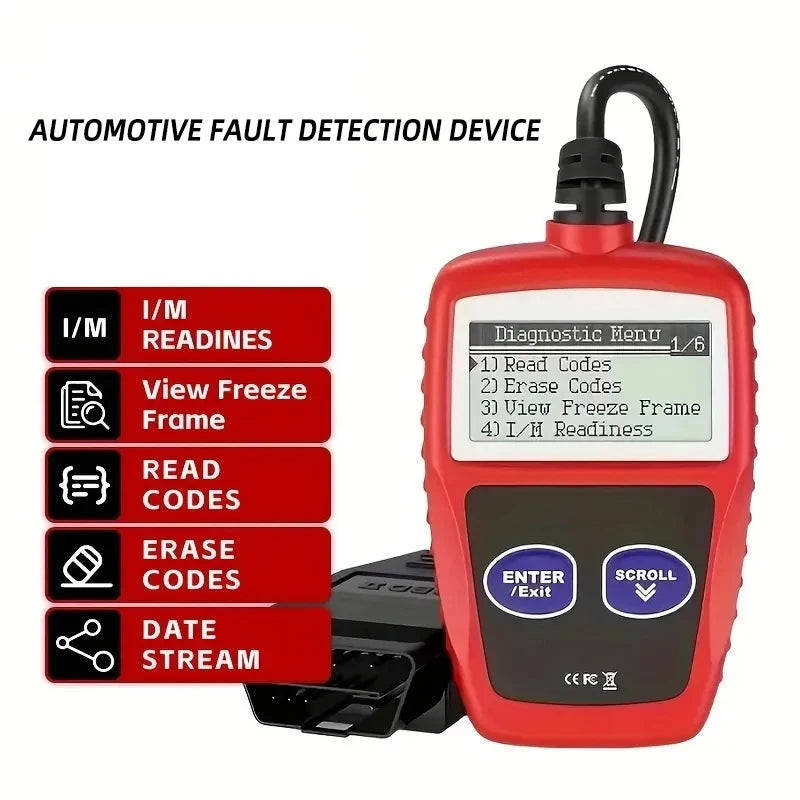

Product Name: Automotive Fault Detection Instrument

Product size: 68*103*16mm

Weight: 165g

Main control chip: single chip

Display screen: 2.4 inches

Voltage: 12V

Working temperature: -40~65 (° C)

Supported languages: English, German, Dutch, Spanish, French

Packing: PP bag

Package included: 1 x car diagnostic tool, 1 x manual

Using the Scan Tool Procedures:

1) Turn the ignition off.

2) Locate the vehicle's 16-pin Data Link Connector(DLC).

3) Connect the Scan Tool cable connector to the vehidle 's DLC. The cable connector is keyedand will only fit one way. (If you have problems connecting the cable connector to the DLC, rotatethe connector 180 and try again.

4) Turn the ignition on. But do not start the engine.

5) When the Scan Tool cable connector is properly connect to the vehicle's DLC, the LCD displayshows instructions for select New Scan.

6) Press the New Scan button, A sequence of message showing the OBD2 protocols will be observedon the display until the vehicle Protocols.

Note:

If the Scan Tool fails to communicate with the vehicle's computer, an Unable to establish a link with the vehicle message shows up.

-Verify that the ignition is ON.

-Check if the Scan Tool's OBD2 connector is securely connected to the vehicle's DLC.

-Verify that the vehicle is OBD2 compliant.

-Turn the ignition off and wait for about 10 seconds. Turn the ignition back to on and repeat the procedure from the step 6.

Attention:

1. This product does not belong to low power consumption. After use, it can be immediately unplugged from the vehicle. If it is plugged into the vehicle for a long time, it will cause damage to the car battery

Electricity.

2. Product Purchase Notice: The product is only applicable to 12V gasoline vehicles, heavy-duty trucks above 24V, diesel vehicles, motorcycles, new energy vehicles, and hybrid vehicles. In addition, if multiple old cars are older than 1996, they do not work. They support Japanese vehicles produced after 2005-2008 and do not support Japanese vehicles manufactured before 2004. All European cars support it. 3.Vehicles that cannot be determined, please refer to the list of supported models to avoid purchasing and being unable to use them.

During product operation, the vehicle should be started first before inserting the product. Avoid the possibility of chip damage during high-voltage moments during the process of starting the car after inserting the product first.
