OBD2 Car Diagnostic Tool Scanner ELM 327 V2.1 OBD2 Code Reader Car Scanner Tool WIFI ELM327 OBDII Auto Diagnostic Tool
OBD2 Car Diagnostic Tool Scanner ELM 327 V2.1 OBD2 Code Reader Car Scanner Tool WIFI ELM327 OBDII Auto Diagnostic Tool
Regular price
R$ 46,00 BRL
Regular price
R$ 53,00 BRL
Sale price
R$ 46,00 BRL
Unit price
/
per
SPECIFICATIONS
Brand Name : NoEnName_Null
Origin : Mainland China
Hign-concerned Chemical : None
External Testing Certification : ce
Item Length : 7
Certification : CE
Special Features : Wifi
Item Width : 4.3
Model Name : 24928
Item Height : 2.4
Item Type : Other
Item Weight : 37.4
Electronic : No
Choice : yes

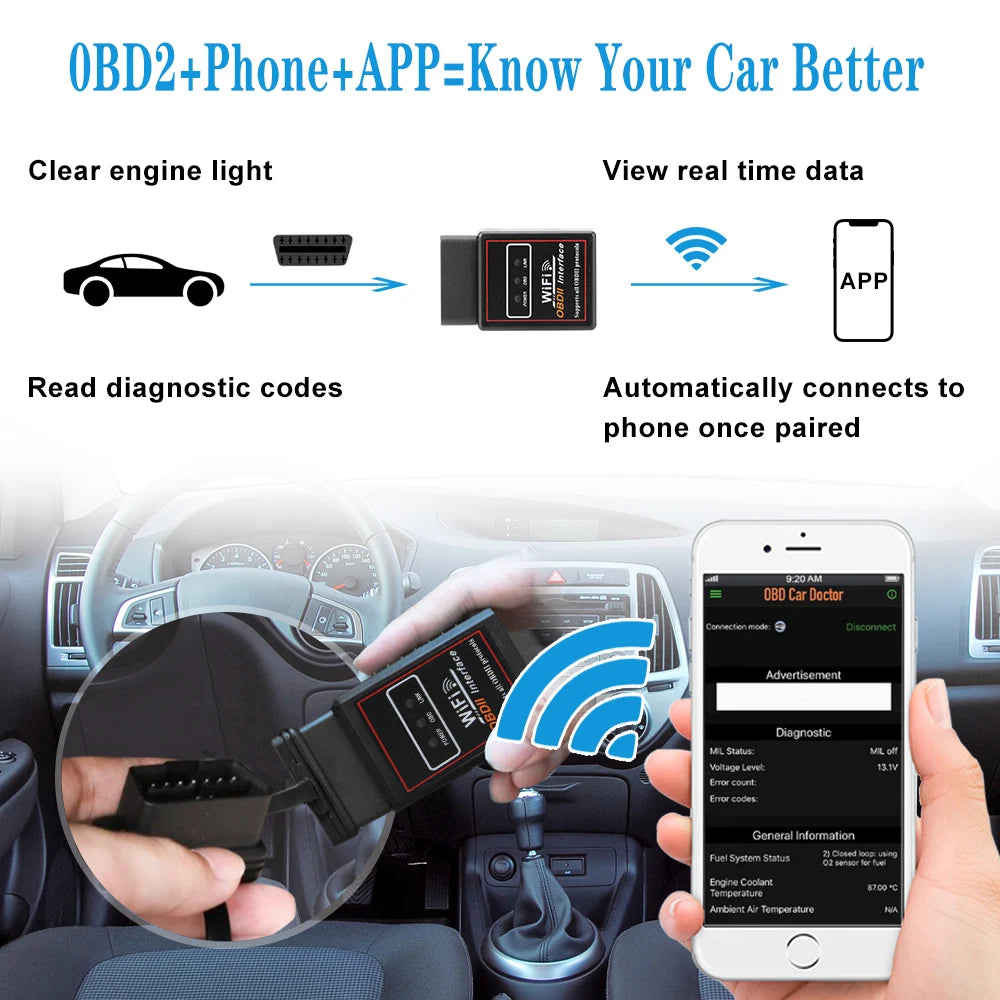

Function:
- Brand new and high quality.
- Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
- Clear trouble codes and turn off the MIL ("Check Engine" light)
- Display current sensor data, including:
- Engine RPM
- Calculated Load Value
- Coolant Temperature
- Fuel System Status
- Vehicle Speed
- Short Term Fuel Trim
- Long Term Fuel Trim
- Intake Manifold Pressure
- Timing Advance
- Intake Air Temperature
- Air Flow Rate
- Absolute Throttle Position
- Oxygen sensor voltages/associated short term fuel trims
- Fuel System status
- Fuel Pressure
Technical Specifications
- SSID: WiFiOBD
- IP: 192.168.0.10
- Subnet: 255.255.255.0
- Port: 35000
- Range: 50 ft (Line of sight)
- Antenna: Internal
- Power Consumption: 0.75 Watts (With Power Switch)
- Wifi Standard: 802.11a/b/g
- Operating Temperature: -15 to 100 Deg Celsius
- Plastic: Automotive Grade
- Physical Dimensions: 2.75 x 1.25 x 1.2 inches
Support OBDII Protocols:
- 1.ISO15765-4 (CAN)
- 2.ISO14230-4 (KWP2000)
- 3.ISO9141-2
- 4.J1850 VPW
- 5.J1850 PWM
Package included:
- 1 x WIFI ELM327
- 1 x CD software
