Note: The product is packaged in single piece, the product setting language is Chinese, and we provide English user manual. Two are needed for the best effect.

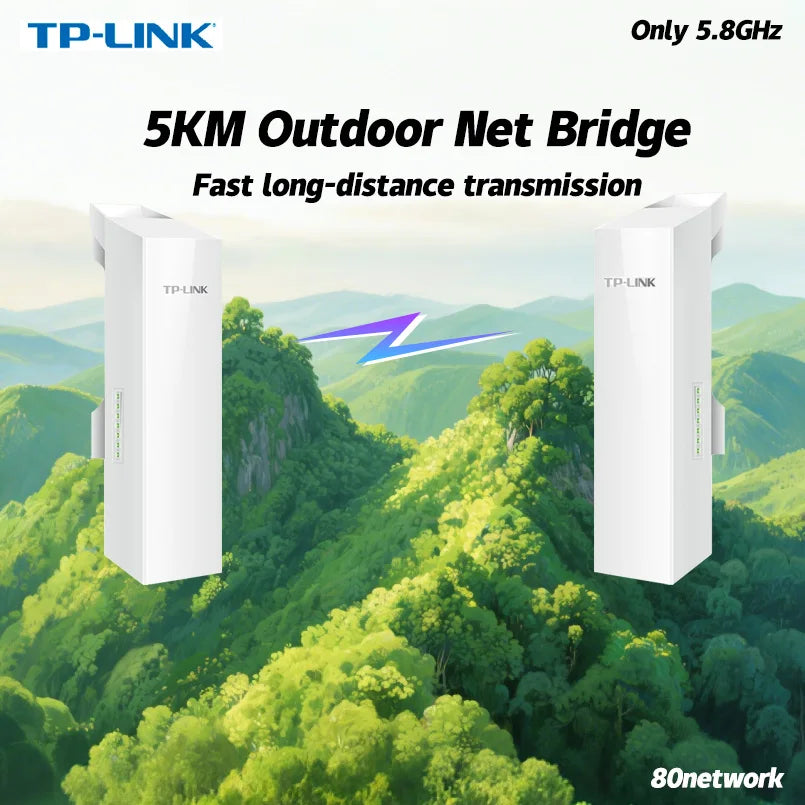

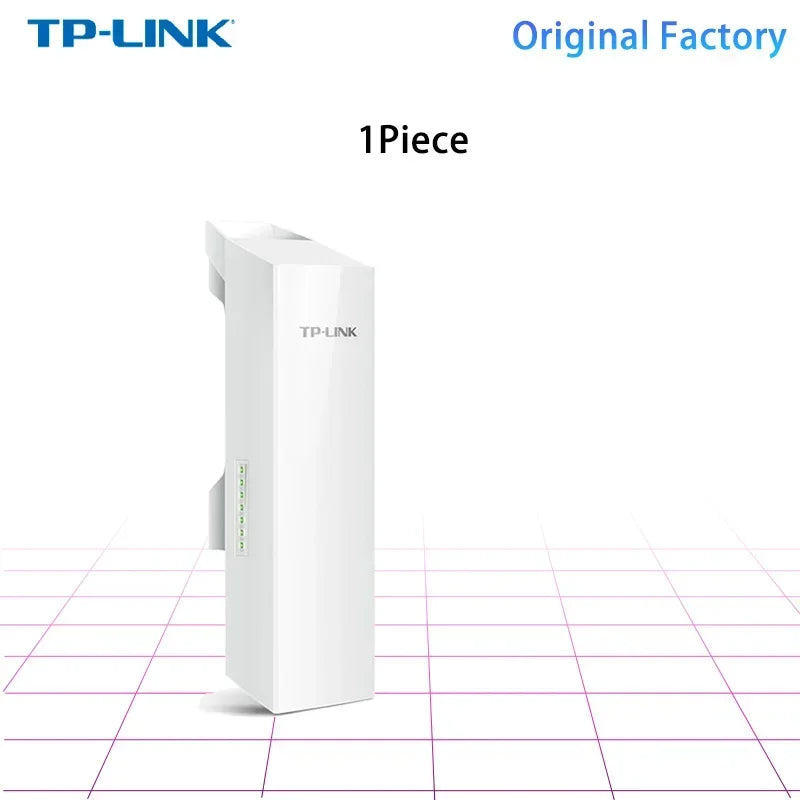

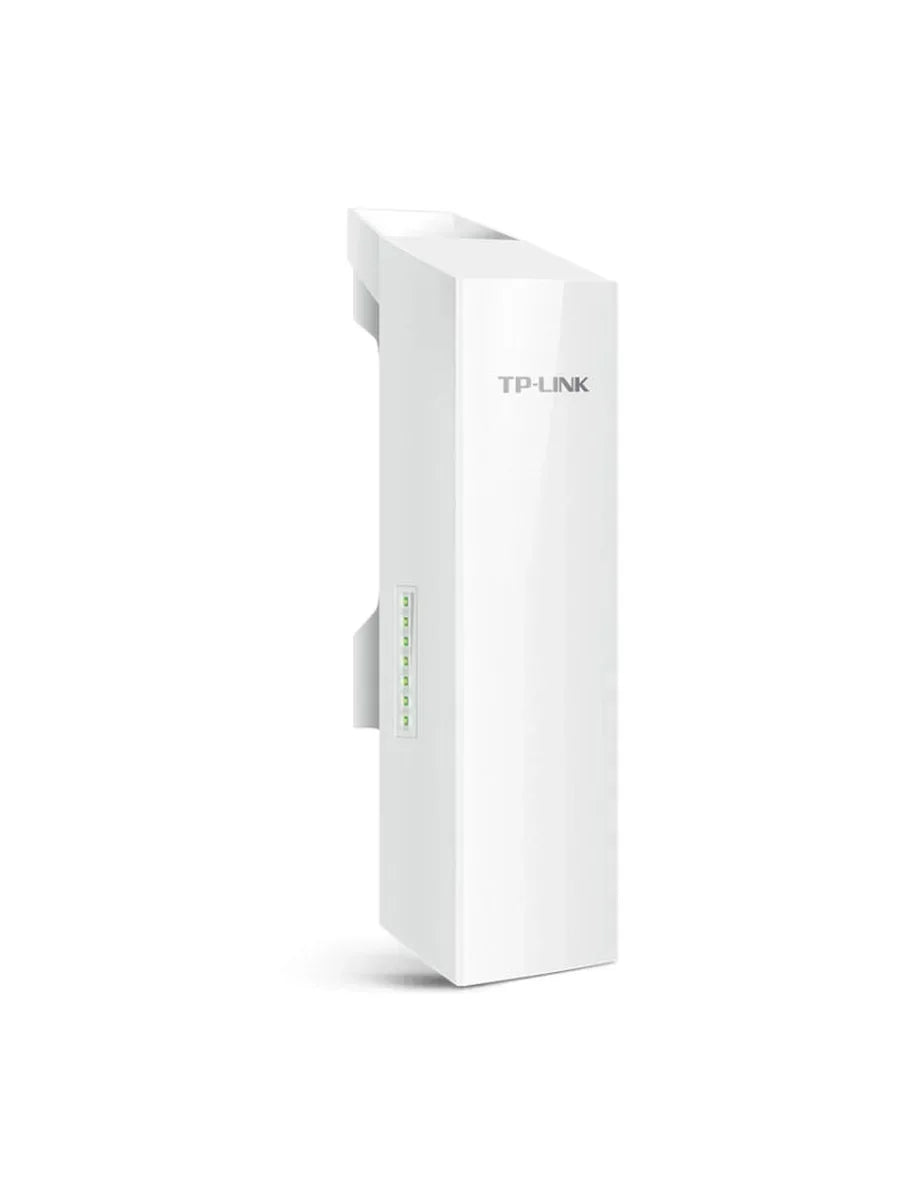

>5GHz AC867 outdoor wireless CPE TL-CPE500/TL-S5-5K(Two models are randomly sent with the same function)

>Professional outdoor housing design, adapt to various harsh environments

>867M wireless, built-in high gain 13dBi dual-polarized antenna, provide high performance wireless

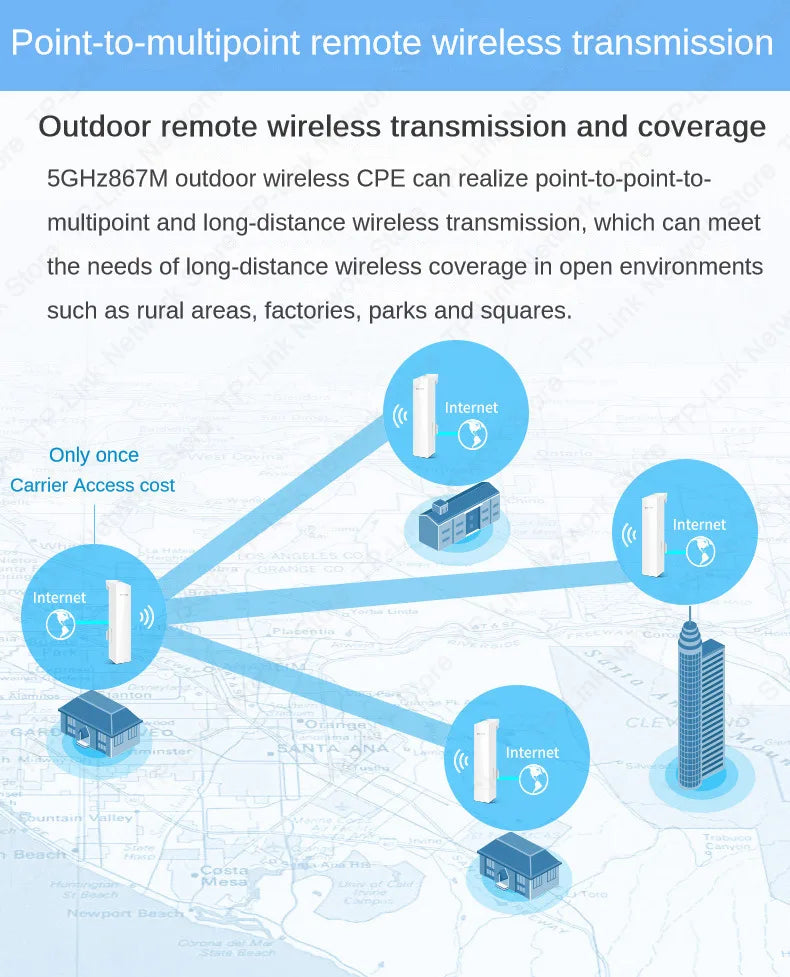

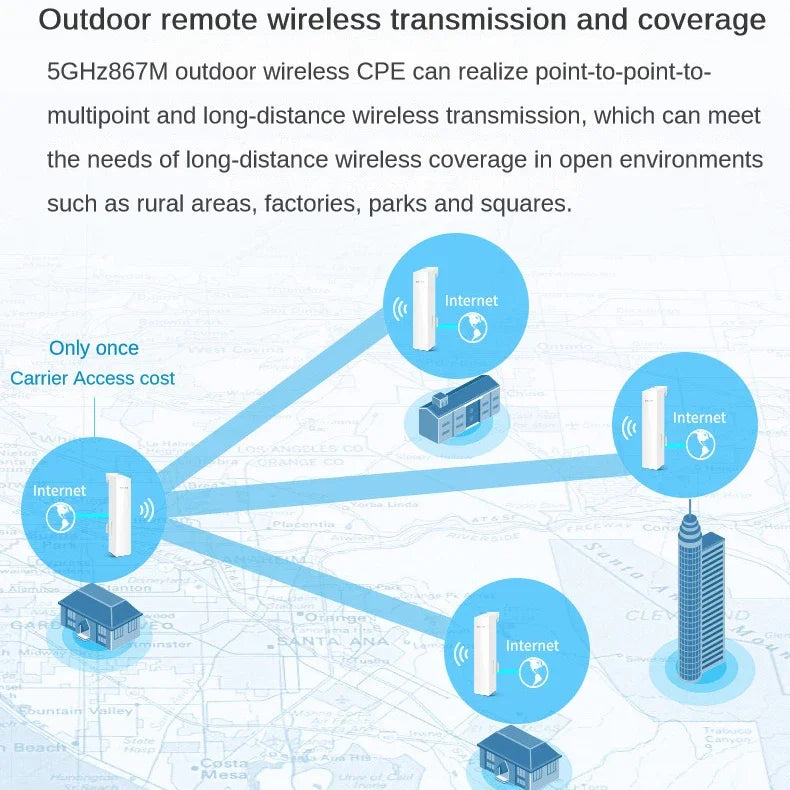

>Pure 5GHz frequency band, less interference, wireless transmission distance 5 kilometers

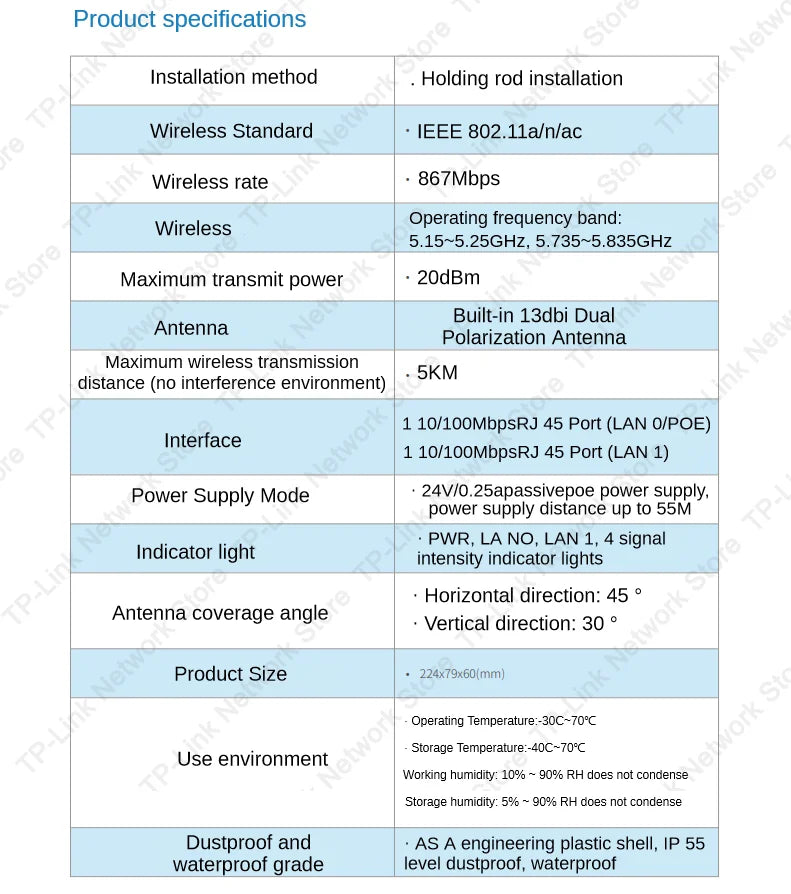

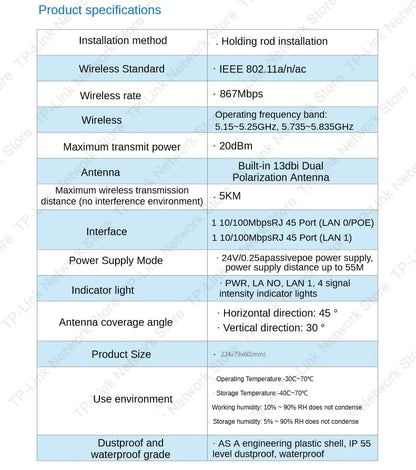

Hardware specifications

>Installation method: Pole-mounted installation

>Wireless standard IEEE 802.11a/n/ac

>Wireless rate 867Mbps

>Wireless operating frequency band: 5.15~5.25GHz, 5.735~5.835GHz

>Maximum transmit power 20dBm

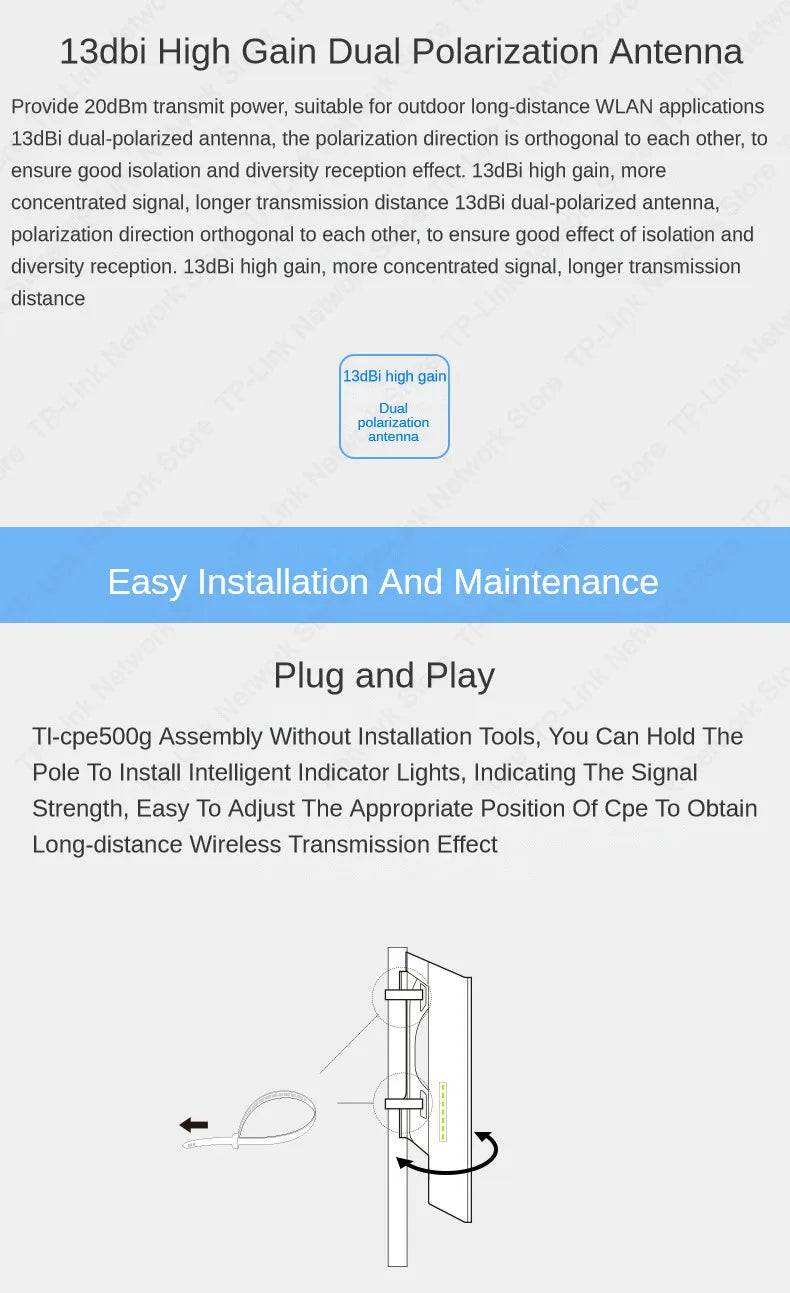

>Antenna built-in 13dBi dual-polarized antenna

> Maximum wireless transmission distance (under non-interference environment) 5 KM

>Interface 1 10/100Mbps RJ45 port (LAN0/POE) 1 10/100Mbps RJ45 port (LAN1)

>Power supply mode 24V/0.25A Passive PoE power supply, power supply distance is up to 55M

>Indicators PWR, LAN0, LAN1, 4 signal strength indicators

> Antenna coverage angle Horizontal direction: 45° Vertical direction: 30°

> Product size 224x79x60(mm)

> Use environment working temperature: -30°C~70° C Storage temperature: -40℃～70℃ Working humidity: 10%～90%RH non-condensing Storage humidity: 5%～90%RH non-condensing

> Dustproof and waterproof grade ASA engineering plastic shell, IP55 grade dustproof and waterproof

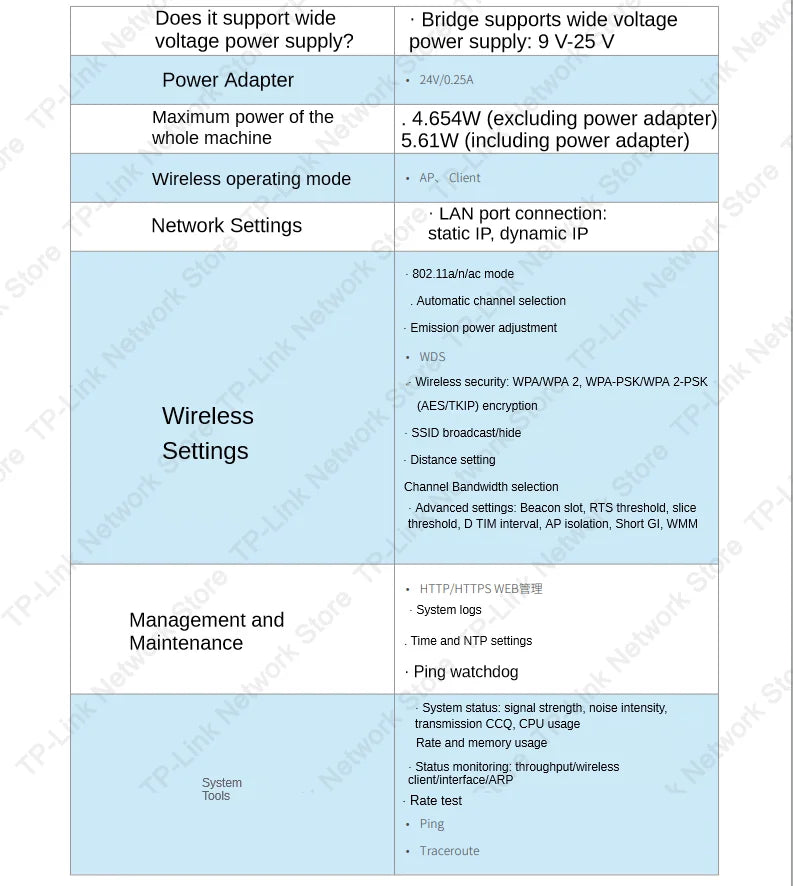

>Whether to support wide-voltage power supply network bridge Support wide-voltage power supply: 9V-25V

>Power adapter 24V/0.25A

>The maximum power of the whole machine is 4.654W (without power adapter) 5.61W (with power adapter)

Software specifications

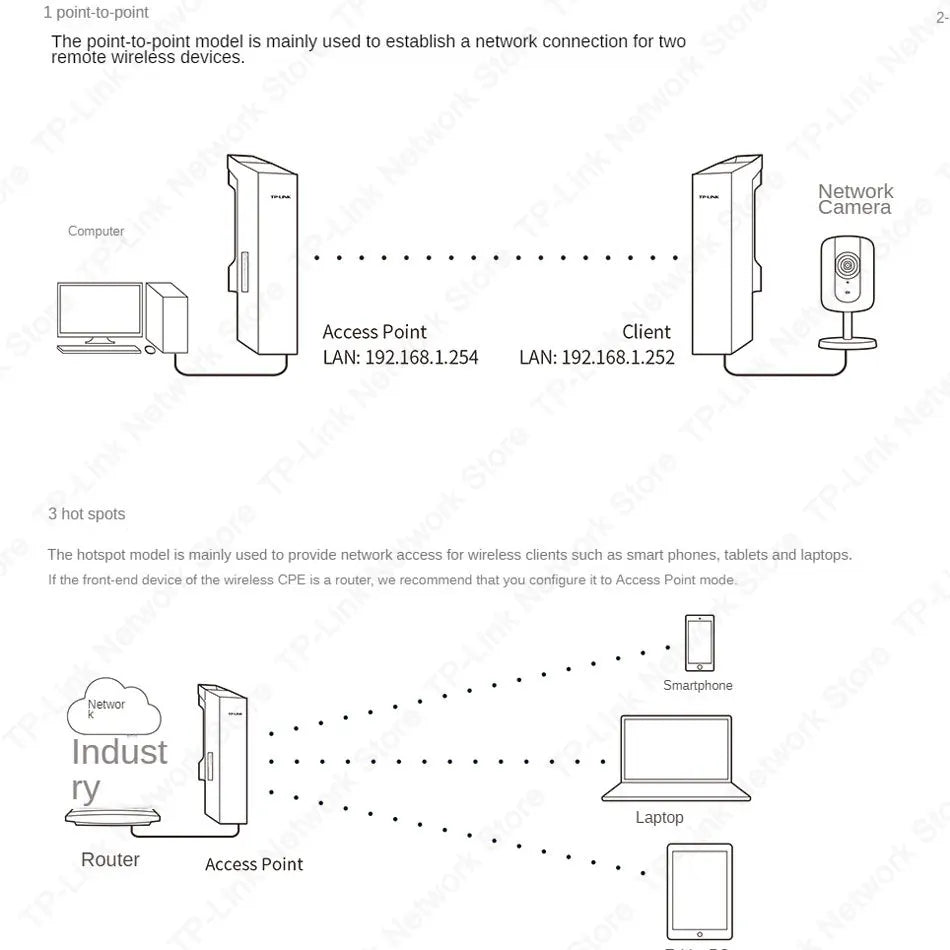

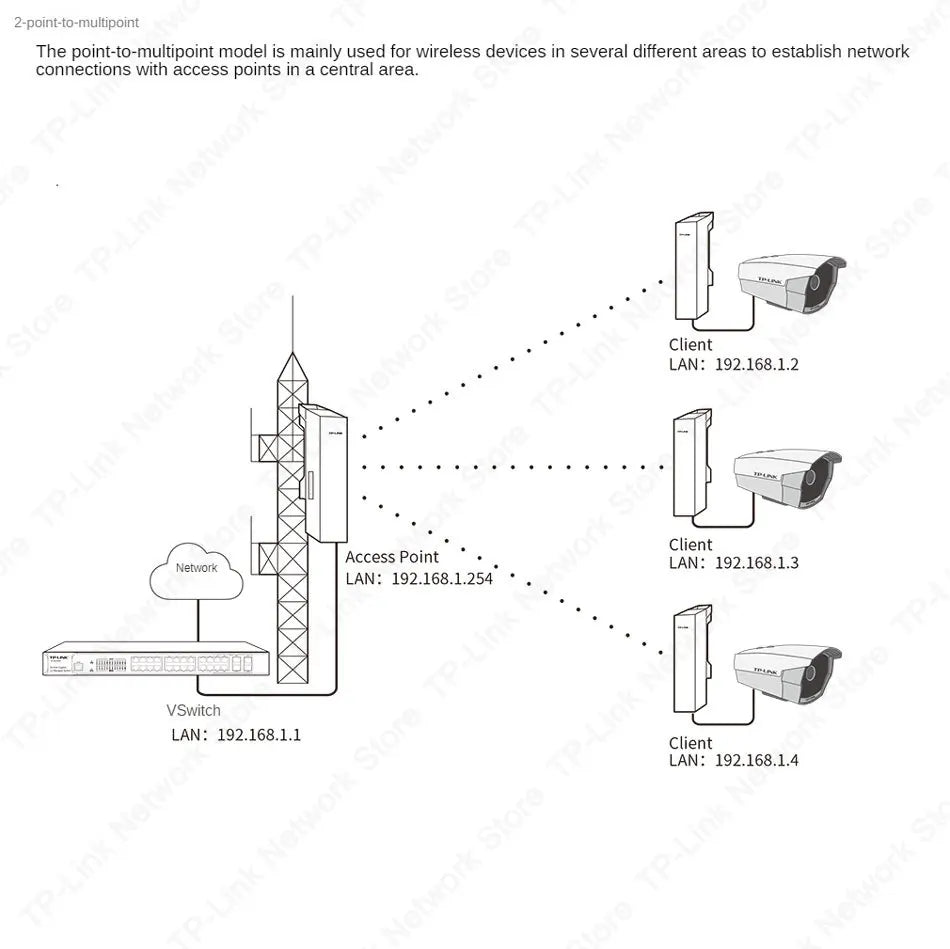

>Wireless working mode AP, Client

>Network setting LAN port connection: static IP, dynamic IP

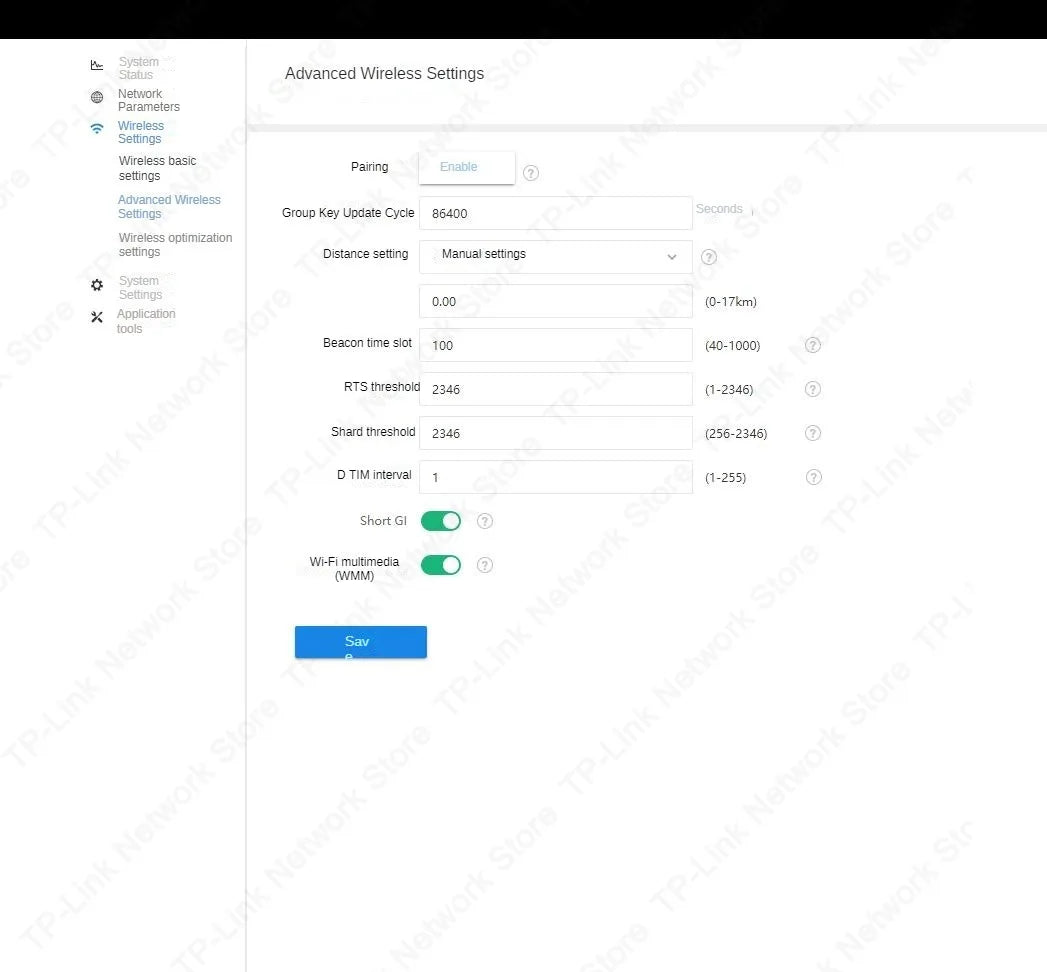

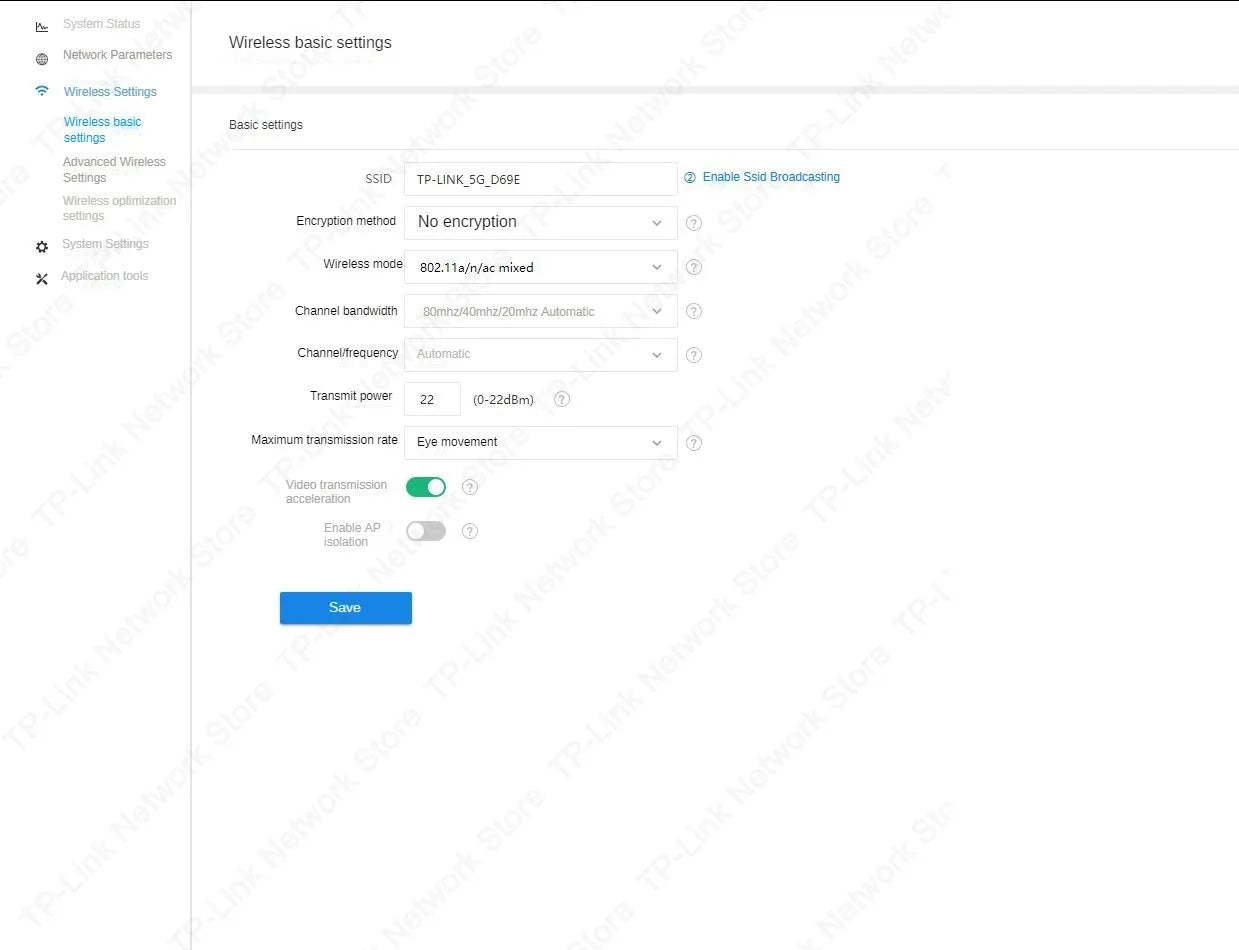

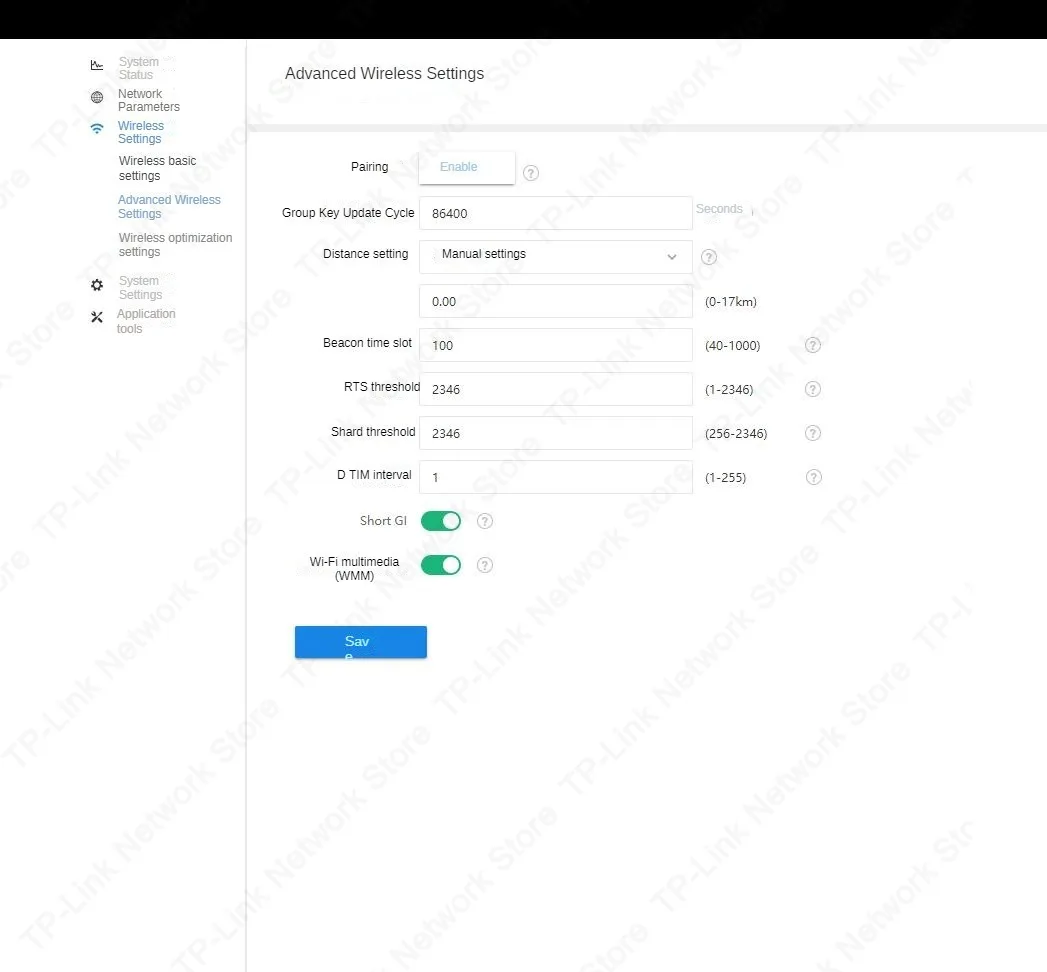

>Wireless setting 802.11a/n/ac mode automatic channel selection Transmit power adjustment WDS wireless security: WPA/WPA2, WPA-PSK/WPA2 -PSK (AES/TKIP) encrypted SSID broadcast/hidden distance setting channel bandwidth selection advanced settings: Beacon time slot, RTS threshold, fragmentation threshold, DTIM interval, AP isolation, Short GI, WMM

> Manage and maintain HTTP/HTTPS WEB management system Log time and NTP settings Ping watchdog

> System tools System status: signal strength, noise strength, transmission CCQ, CPU occupancy, memory occupancy Status monitoring: throughput/wireless client/interface/ARP spectrum analysis rate test Ping Traceroute

>System optimization IGMP Snooping optimization hardware watchdog
