Product Description
TRENDY & STYLE
100% HANDMADE
Proin euismod elit at viverra condimentum. Donec ornare sodales tincidunt. Integer fringilla suscipit erat a ornare. Curabitur ullamcorper varius congue. Donec congue commodo ex in ullamcorper. Cras vitae lectus gravida, gravida nunc ut, hendrerit lorem. Donec nec mattis metus, ut posuere odio. Integer ut ultrices nibh.
SPECIFICATIONS
Brand Name: Gaqqee
Origin: Mainland China
Hign-concerned Chemical: none
DIY Supplies: ELECTRICAL
Display Type: LCD Display
DC Voltage: 3.7V
Measuring Resistance Range: 0.01-50
Certification: CE
Measuring Capacitance Range: 25-100
Model Number: LCR-TC1
Is Smart Device: no
Measuring Inductance Range: 0.01 mH-20H

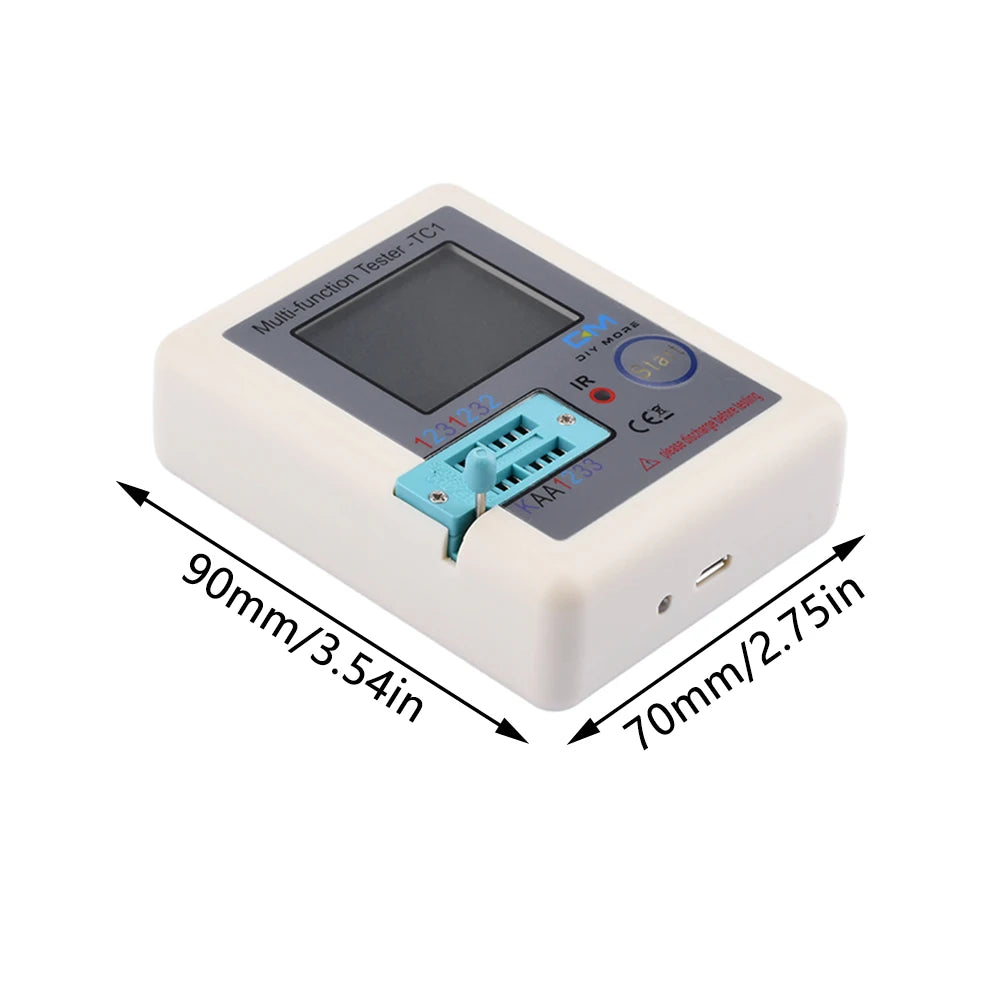

Dimensions: 1.8inch
Operating Temperature: 0 - 40 ℃
Choice: yes
• 1.8 inch TFT LCD display: The product features a large 1.8 inch TFT LCD display that makes it easy to read and use.
• Multi-functional: This multimeter is not just a resistor tester, but also a capacitor, diode, and transistor tester, making it a versatile tool for electrical professionals.
• Wide Operating Temperature Range: The product can withstand temperatures ranging from 0 to 40 degrees Celsius, making it suitable for use in a variety of environments.
• CE Certified: The product is certified by CE, ensuring that it meets the safety and quality standards set by the European Union.
• Large 1.8 inch TFT LCD display: The product features a large 1.8 inch TFT LCD display that provides clear and easy-to-read results.
• Dual Functionality as a Multimeter and Transistor Tester: This product is a versatile tool that can be used as both a multimeter and transistor tester, making it a valuable addition to any electronics enthusiast's toolkit.
• Wide Operating Temperature Range: With an operating temperature range of 0-40 degrees Celsius, this product can be used in a variety of environments and is suitable for both hot and cold conditions.
• CE Certification: This product has been certified by CE, ensuring that it meets the highest safety and quality standards.
This is a cost-effective and widely used transistor detector. Can be used to detect NPN and PNP transistors, capacitors, resistors, diodes, triodes, N-channel and P-channel MOSFETs, thyristors, batteries, etc. Can also be used to detect infrared waveforms.
Features:
Can be widely used to detect NPN and PNP transistors, capacitors, resistors, diodes, transistors, N-channel and P-channel MOSFETs, IGBTs, JFETs, thyristors, batteries, etc.
. Zener diodes can also be detected and have a functional self-calibration.

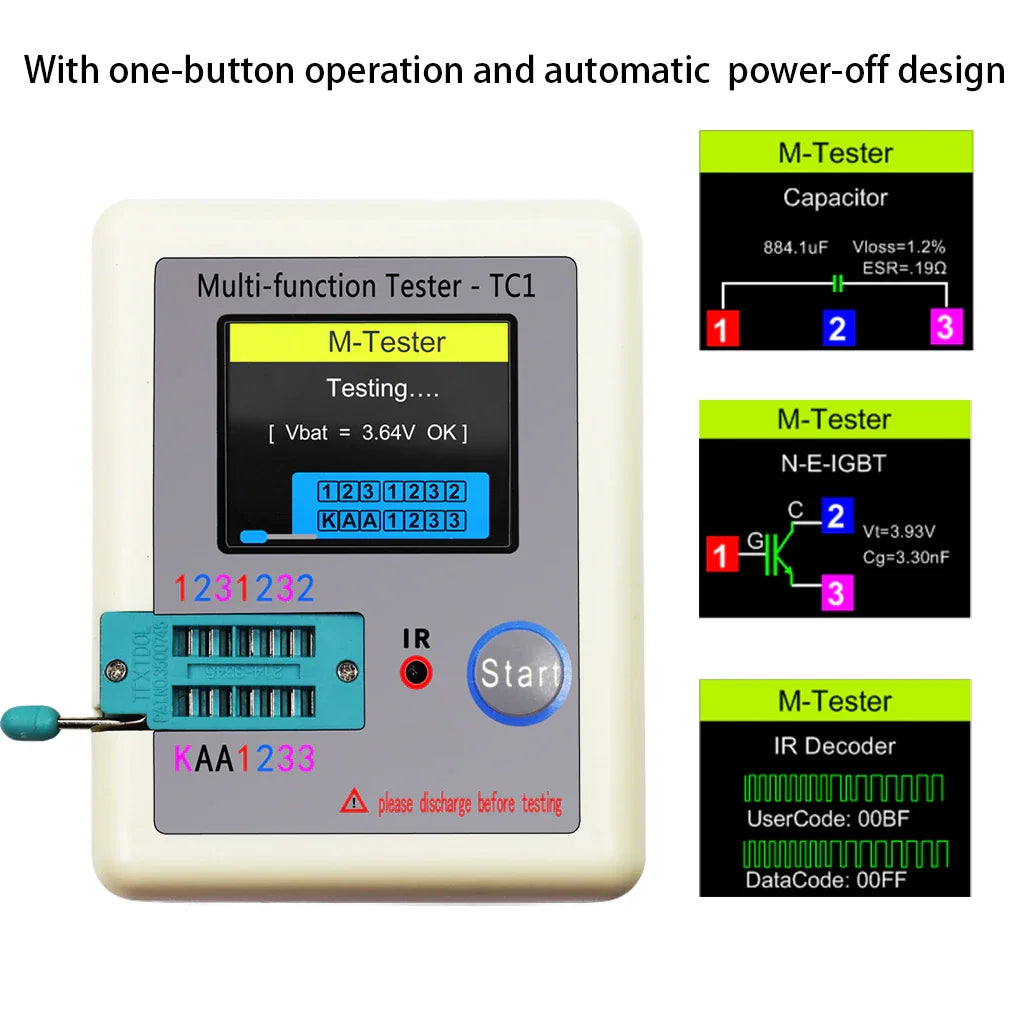

After the detection is completed, point the infrared remote control at the "IR" light, and then press the button on the remote control. If the detector decodes successfully, the data code and infrared waveform will be displayed.
One-key operation, automatic detection and shutdown, you can also press the multi-function button to turn off the detector.
Place the pins of the components in the corresponding area, turn the small handle, the detector will automatically detect, and the final result will be clearly displayed on the backlit TFT screen.
Instead of the usual black and white display, this detector will display the results in color.

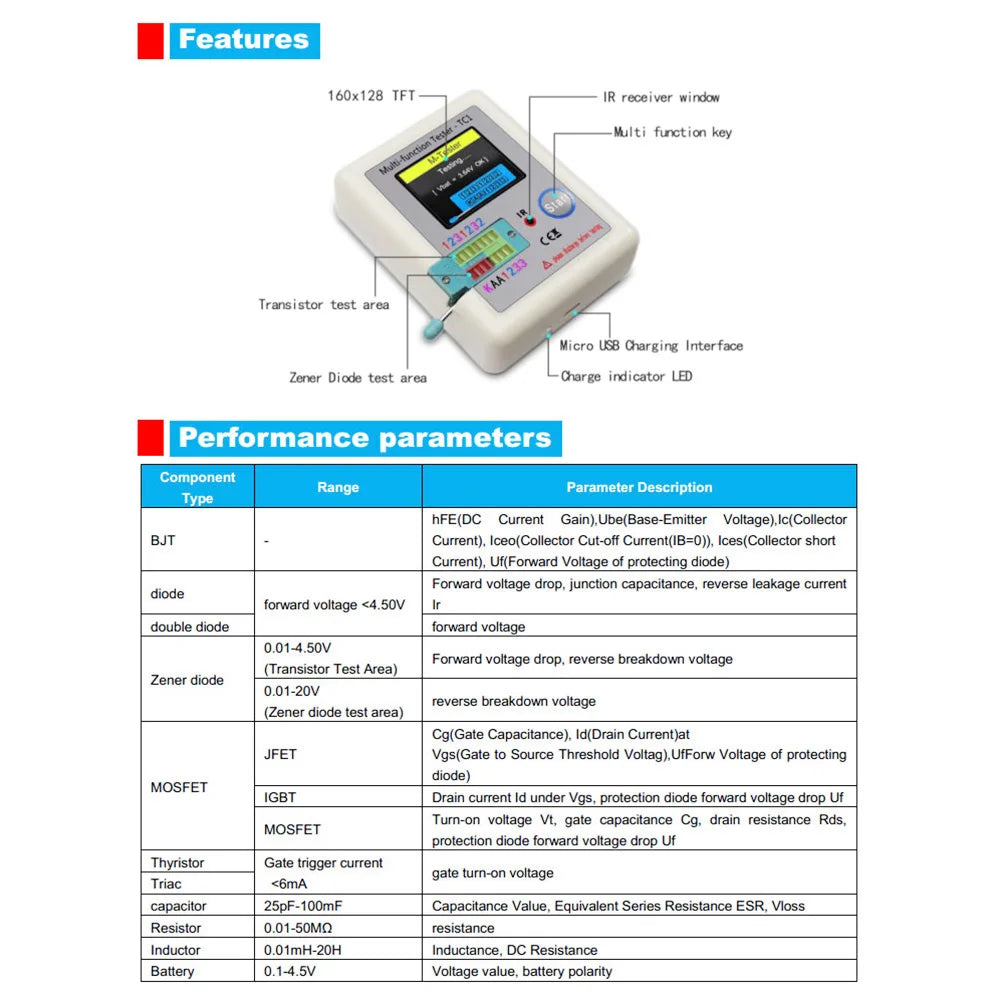

Specification:
Power Mode: Rechargeable Lithium Battery
Display: 3.5*3cm TFT screen
Diode Range: < 4.5V
Zener diode: transistor detection area: 0.01-4.5V Zener diode detection area: 0.01-20V
Triac Range: IGT < 6mA
Capacitance: 25pF- 100mF
Resistance: 0.01-50MΩ
Inductance: 0.01mH-20H
Battery: 0.1-4.5V(with battery)
Product chip: High-performance mcu
Instruction:
Transistor tester
Automatic detection of NPN and PNP bipolartransistors.N-channel and P-chmnnel MOSFETs,JFETs diodes(including double Diodes)N.and P-IGBTS, resisiors, Inductors, capacitors, thyristors,triac and battery (0 .1-4.50V) Automatie detection of zener diode (0.01-20v). Self test with automatic calibration
IR decoder
Support Hitachi IR coding
IR waveform display
Other
Measurement results using TFT graphic display(160x128)
Auto Power Off(Timeout Settable)
Built-in rechargeable Li-ion Battery
Li-ion Battery voltage detection- 160x128 TFT display
Power on
In the power off state, short press the multifunction key, the tester is turnedon and automatically measured.
IR dcoder
After the component test is completed, point the infrared remote control at the "IR" test hole of the tester, press the remote control button, the tester will display the user code and data code after successful decoding, and display the corresponding infrared waveform.
If the decoding fails or the decoding fails, the user code and data code cannot be displayed. At this time, if you are in the tester interface, you cannot enter the infrared decoding interface. If you are in the infrared decoding interface, the last successful decoding information will still be displayed.
Detect Zener Diode
When the device is turned off or the test is completed, put the Zener diode into the Zener diode test area, press the locking handle, and briefly press the multi-function button.
Automatic calibration
Short-circuit three test sockets, short press the multi-function button, and the tester will automatically calibrate.
During the calibration process, there is no need to perform other operations except to disconnect the short wire according to the prompts.
Shutdown
Automatic shutdown after timeout
When the component test is completed or the infrared decoding is completed, and the automatic shutdown time is reached, the tester will automatically shut down (overtime 30 seconds)
Standby power consumption is 0 UA after shutdown.
Battery voltage measurement
Before each component measurement, the built-in lithium battery voltage will be detected and displayed. When the battery voltage is less than 3.1V, it will be forced to shut down. Please charge it at this time.

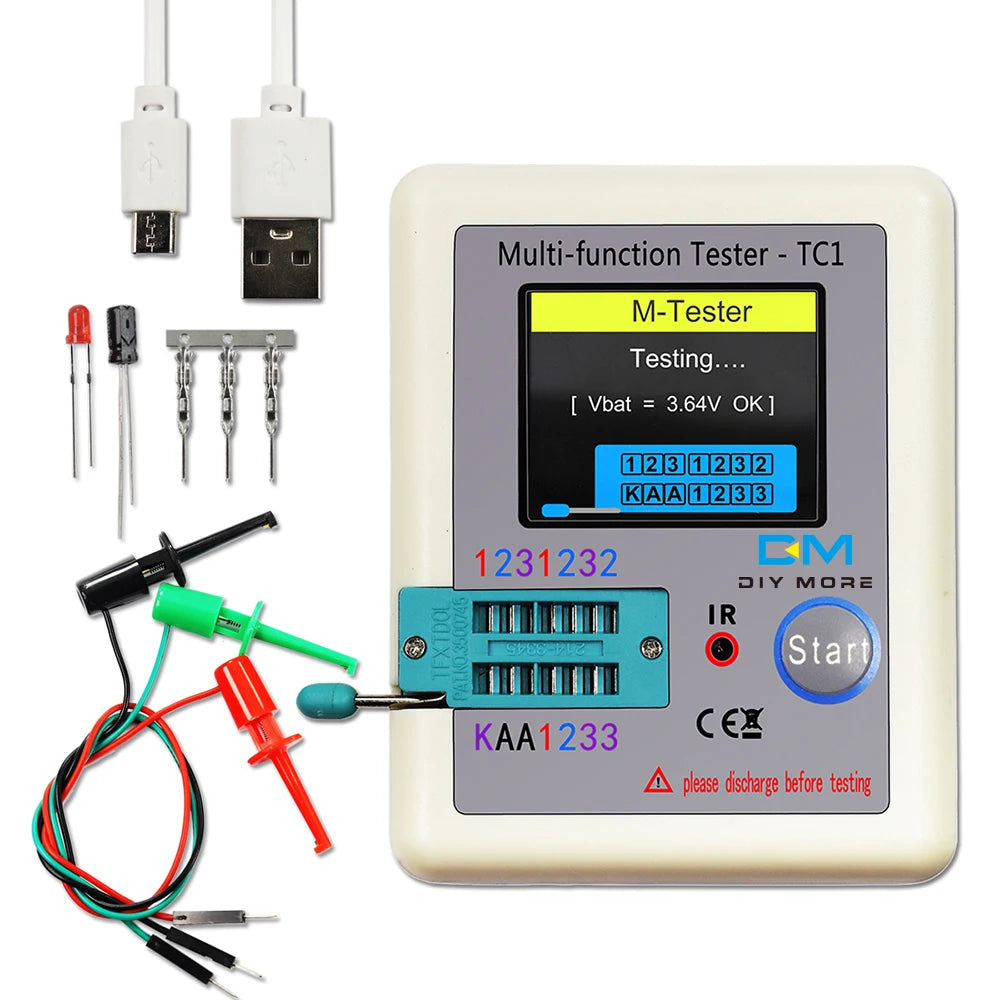

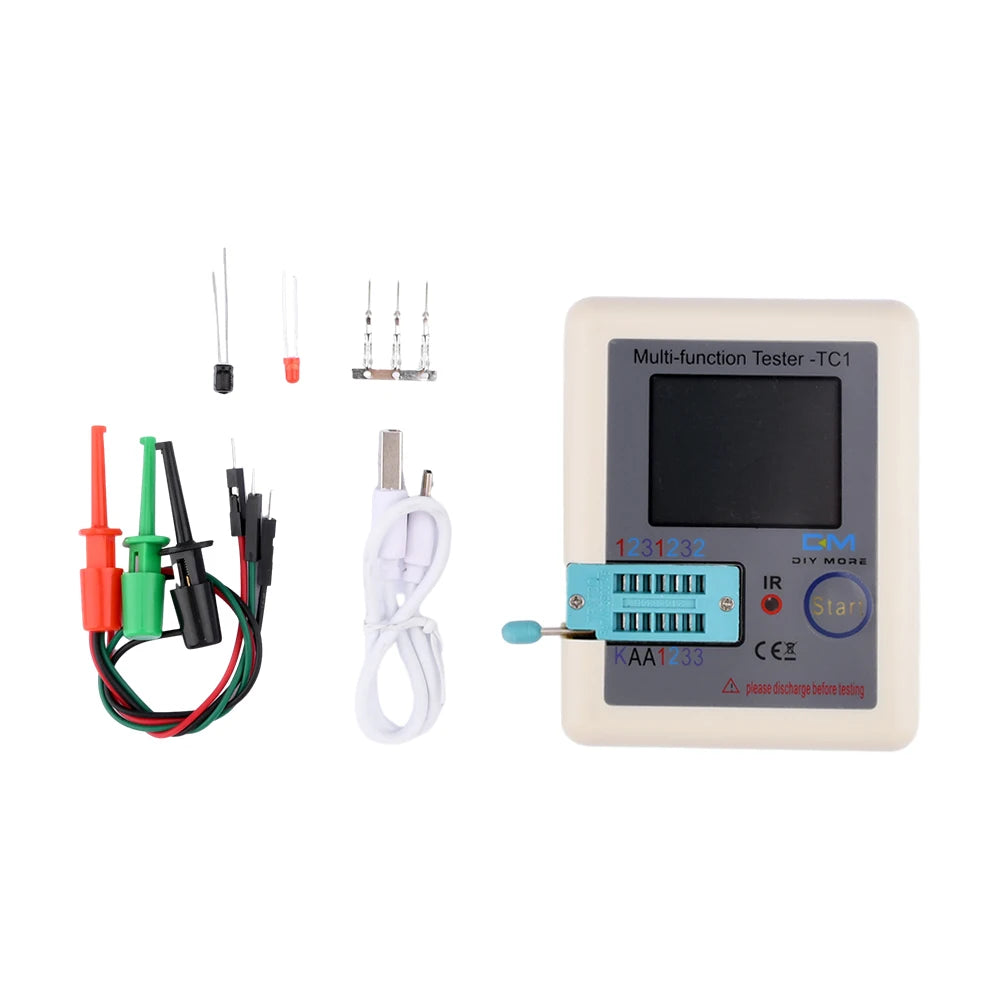

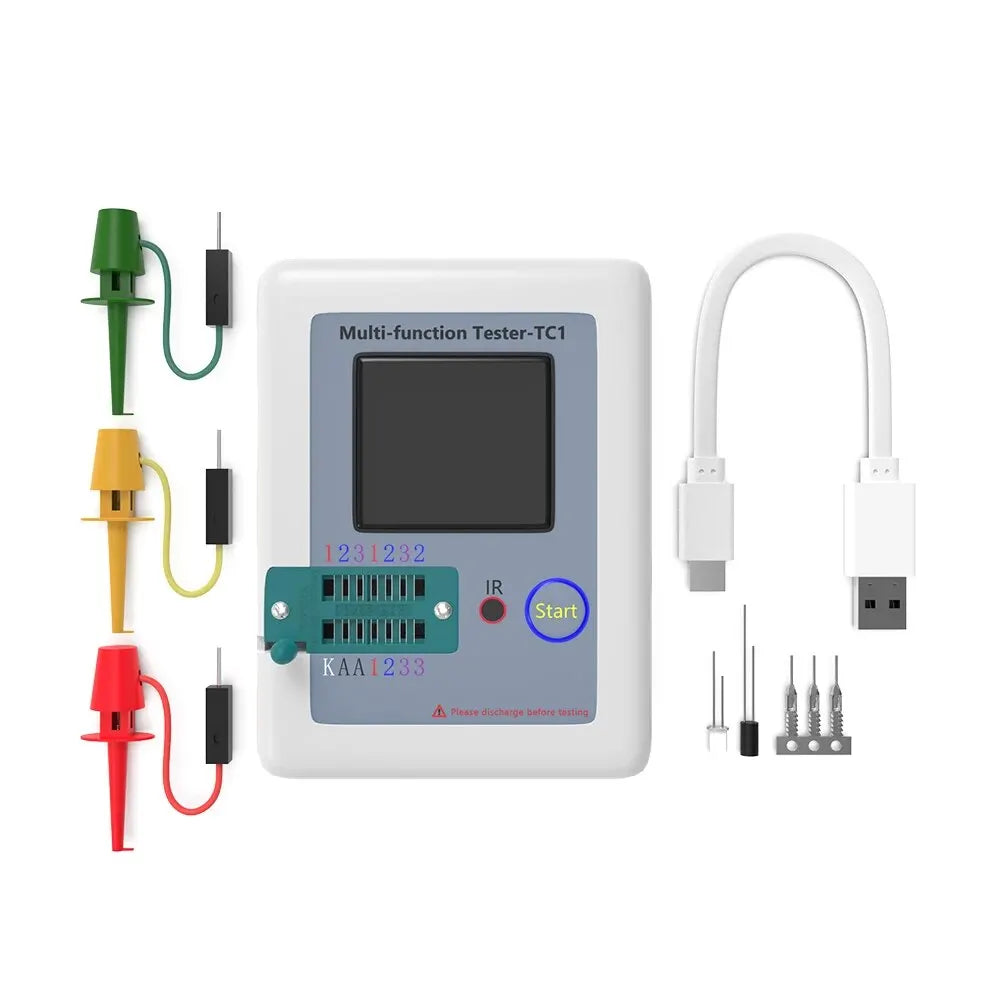

Package Included:
1* Multifunctional TFT Transistor Tester

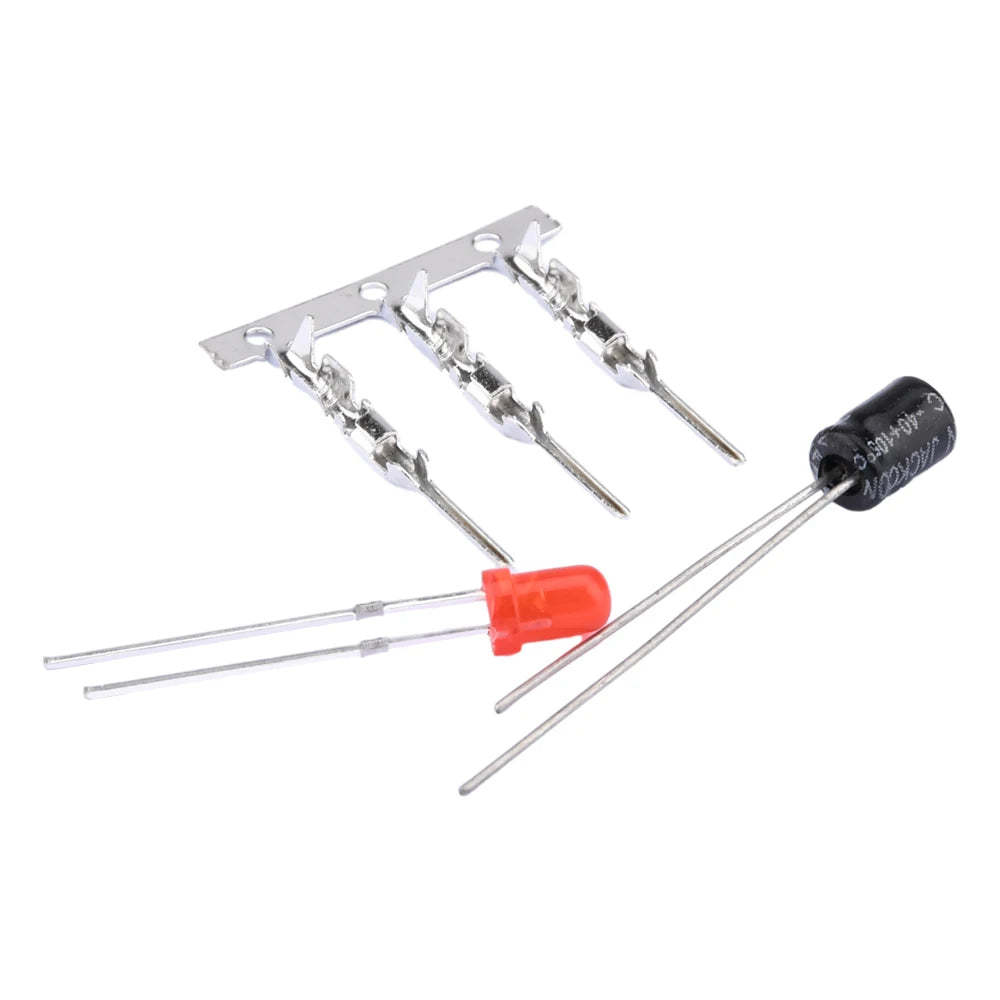

1*Electronic components set
1*Cable
3*Test hook
Noted:
If the quality problem of the product is found after receiving the express, please do not open the dispute at will. Please contact our after-sales customer service to solve it in a timely manner. Thank you for your support and understanding!
Cautions for use:
The capacitor shall not be tested without discharge
The inductance of the transformer cannot be tested
don't test online with electricity
Do not hook three hooks onto the circuit board for testing
Do not test live circuit boards
Otherwise, the tester will be burnt down. Burning the tester is the buyer's reason.
When the voltage and internal battery are below 3V, please charge before use.
Please use 5V battery or USB port to charge.
