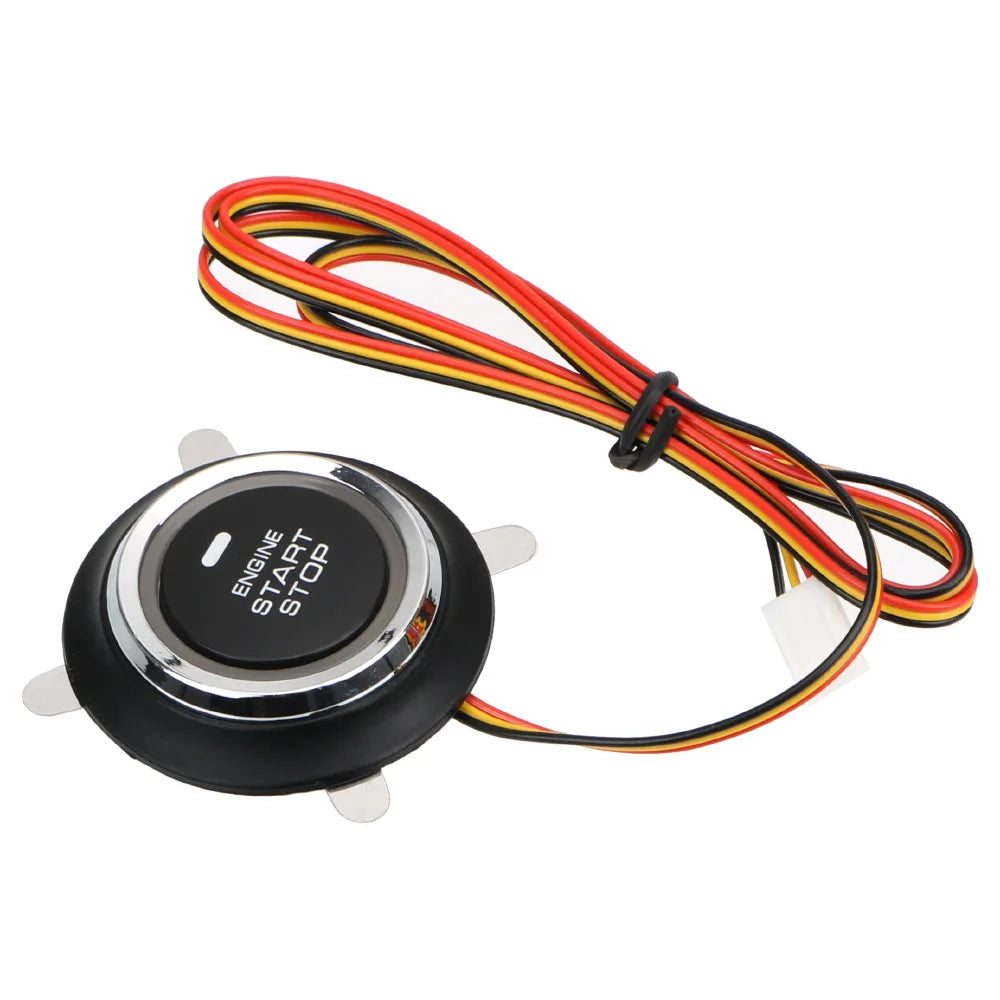

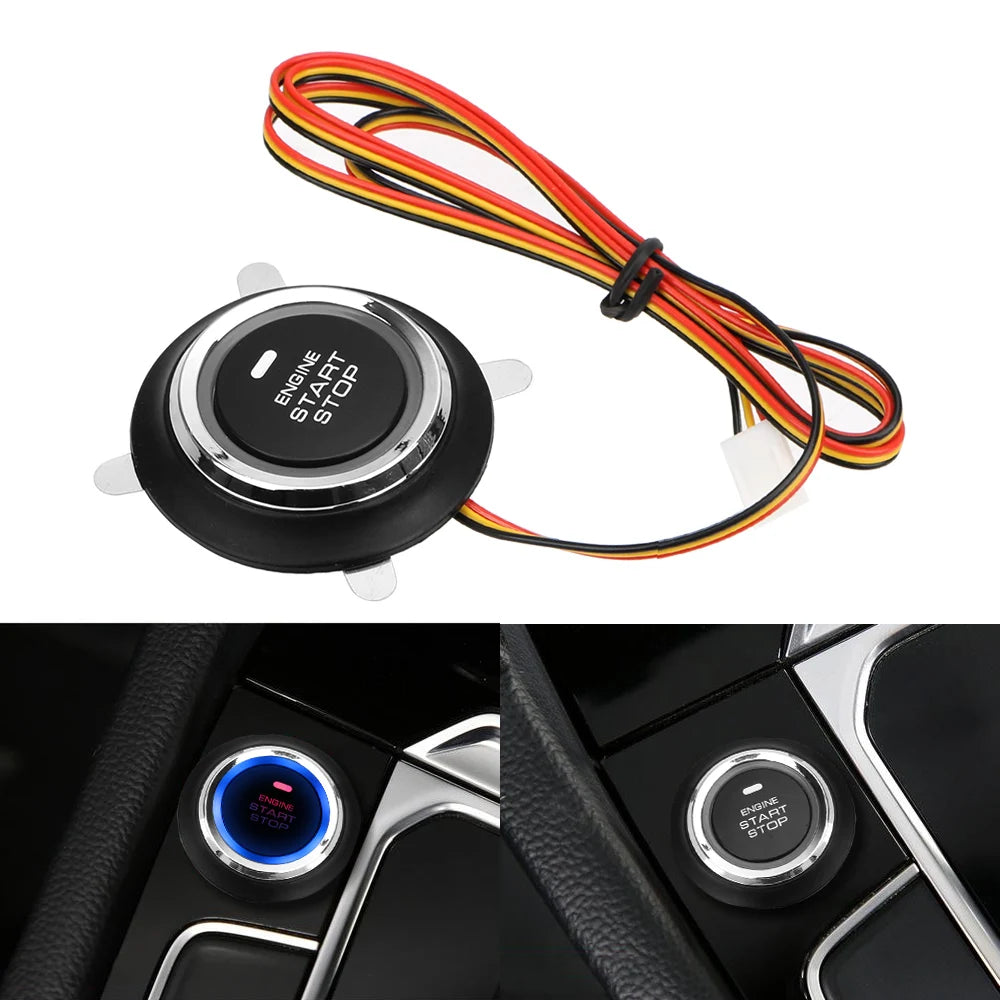

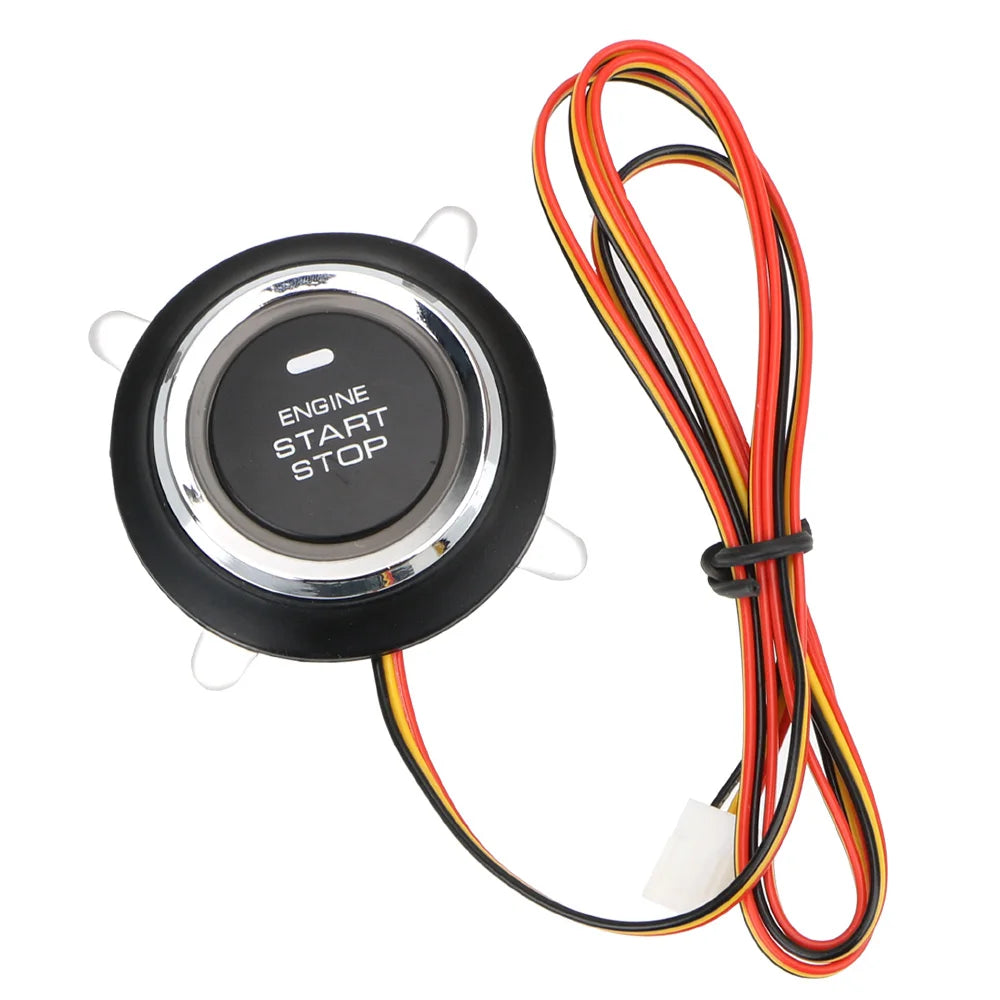

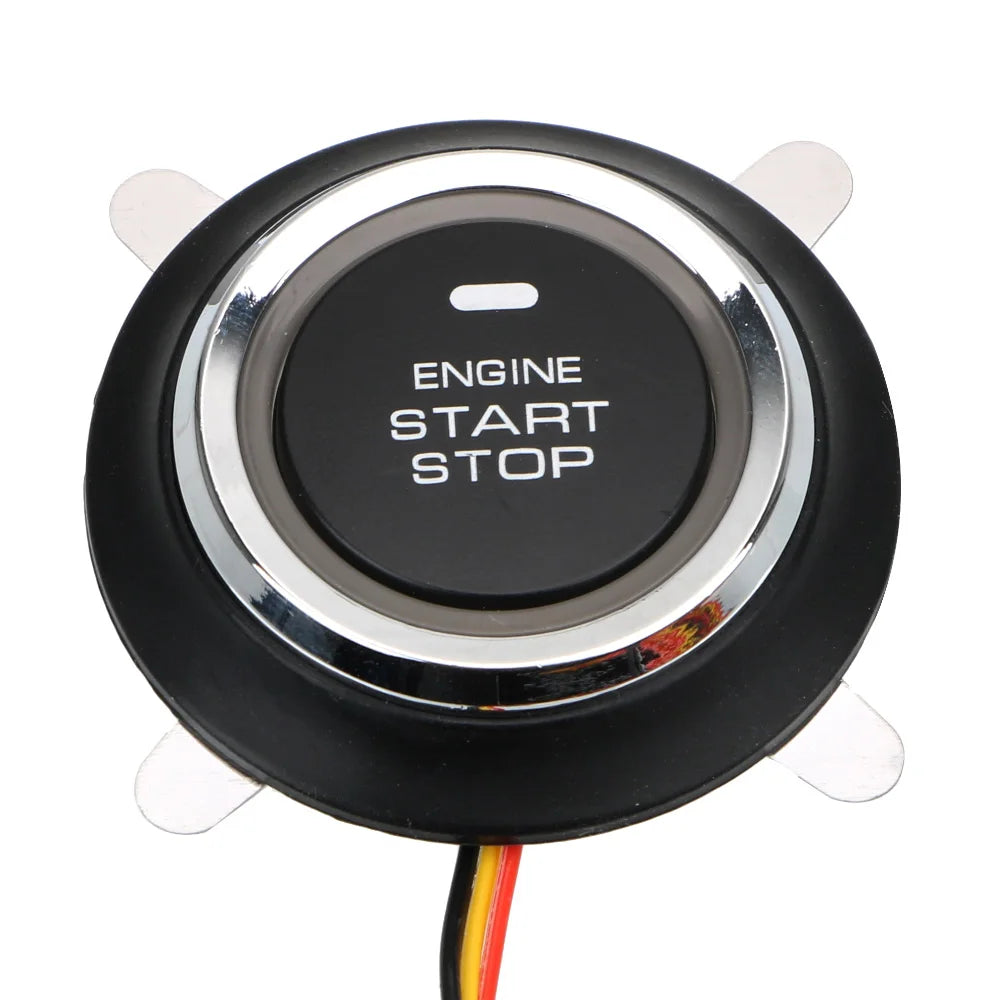

Auto Replacement Entry Ignition Starter Switch Universal Auto Car Engine Start Stop Push Button Car-styling 12V Keyless
15
sold in last
17
hours
Limited-Time Offers, End in:
00D:
00H:
00M:
00S
R$ 39,00
R$ 33,00
SPECIFICATIONSBrand Name: NoEnName_NullOrigin: Mainland ChinaHign-concerned Chemical: NoneSpecial Features: UniversalModel Name: 23254Item Weight: 38gChoice: yes Specification: Product specifications: thickness: 10mm, (excluding 4 angle iron) outer diameter: 40.8mm (without black silicone ring) Line position function: Red line (Button +12V power supply line) Black line (button LED light negative control) Yellow line (key...
customers are viewing this product
SPECIFICATIONS
Brand Name: NoEnName_Null
Origin: Mainland China
Hign-concerned Chemical: None
Special Features: Universal
Model Name: 23254
Item Weight: 38g
Choice: yes
Specification:

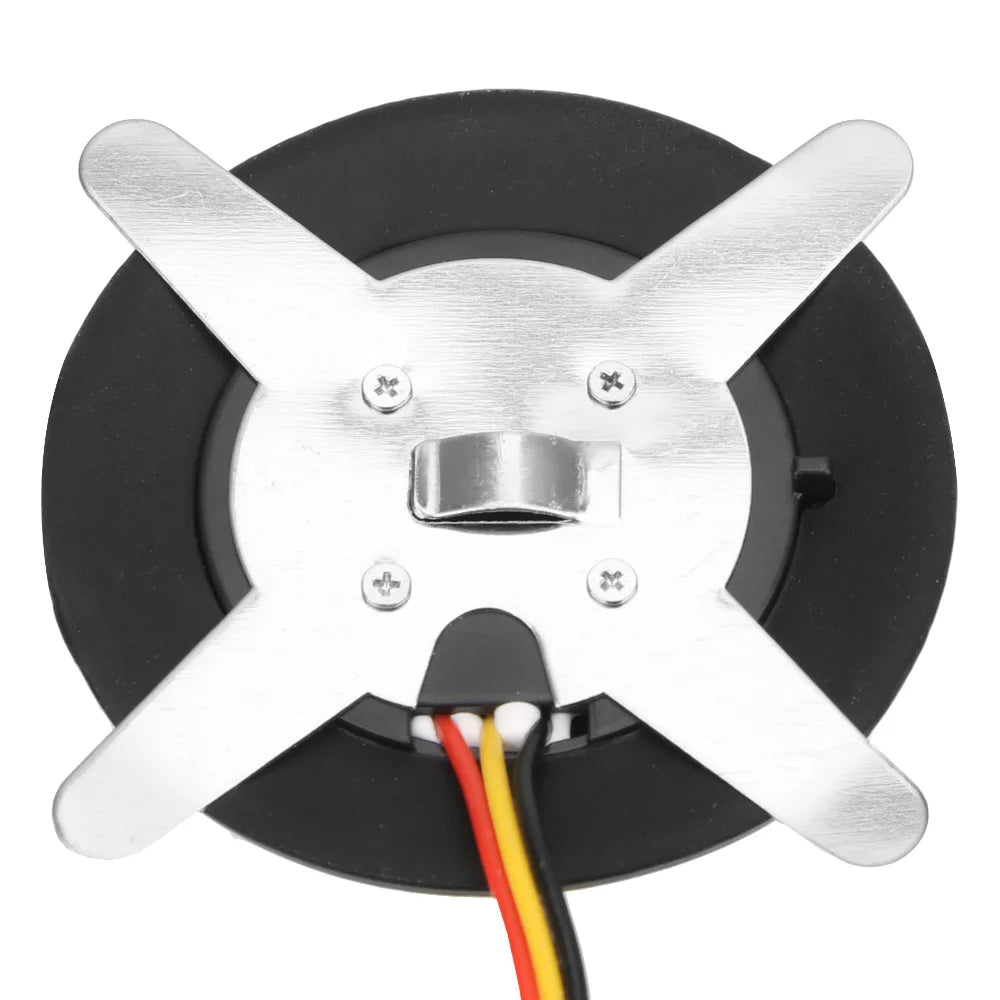

- Product specifications: thickness: 10mm, (excluding 4 angle iron) outer diameter: 40.8mm (without black silicone ring)
- Line position function:
- Red line (Button +12V power supply line)

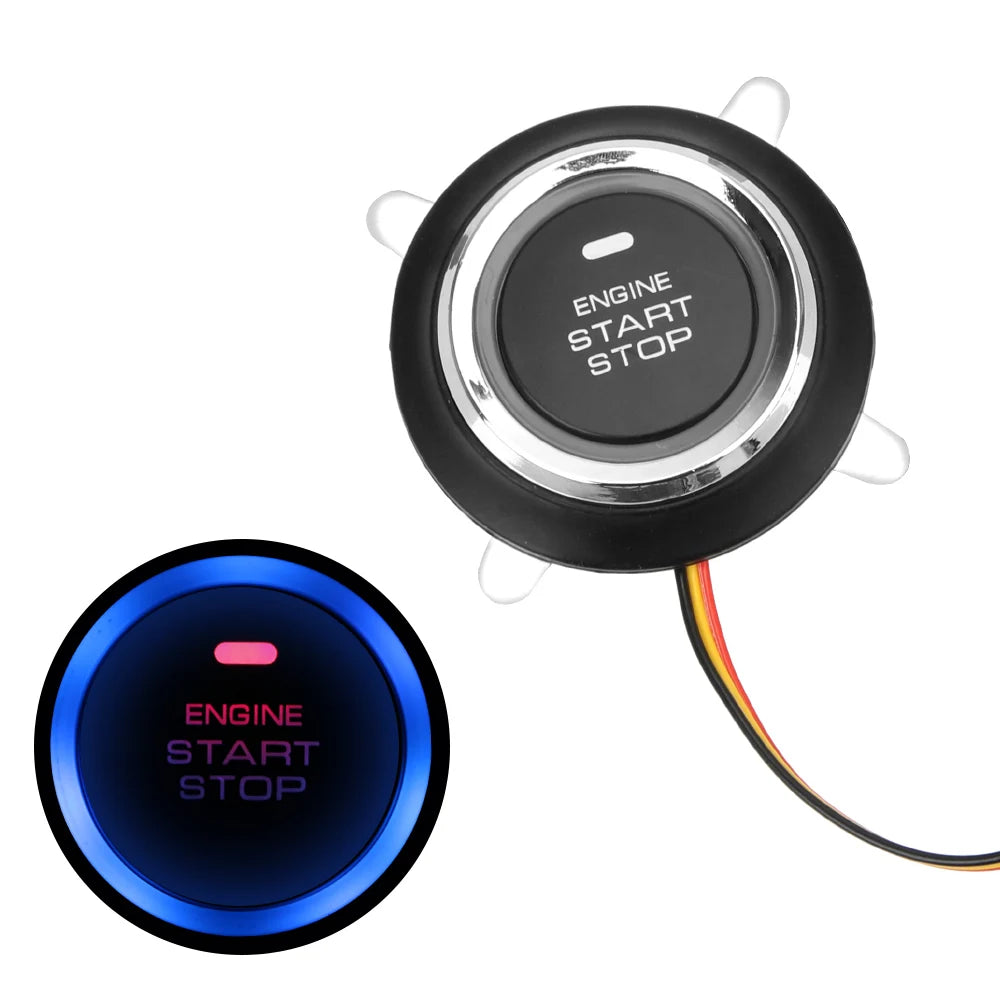

- Black line (button LED light negative control)
- Yellow line (key switch positive power trigger output control)
- 3-line function description:
- + Positive trigger output control, after pressing the start button, the yellow line outputs +12V; the black line connects the button light to control the negative output line, and the button light illuminates.
Package Included:
- 1 x Auto Car Engine Start Stop Push Button
