Auto Focus: No
Brand Name: ELP
Certification: CE,FCC
Elp Model: ELP-USB4KCAM01H-CFV(2.8-12)
High-concerned chemical: None
Image Sensor: CMOS
Interface Type: USB
Max. Resolution: 3840x2160
Origin: Mainland China
Package: Yes
Pixels: 8 Mega

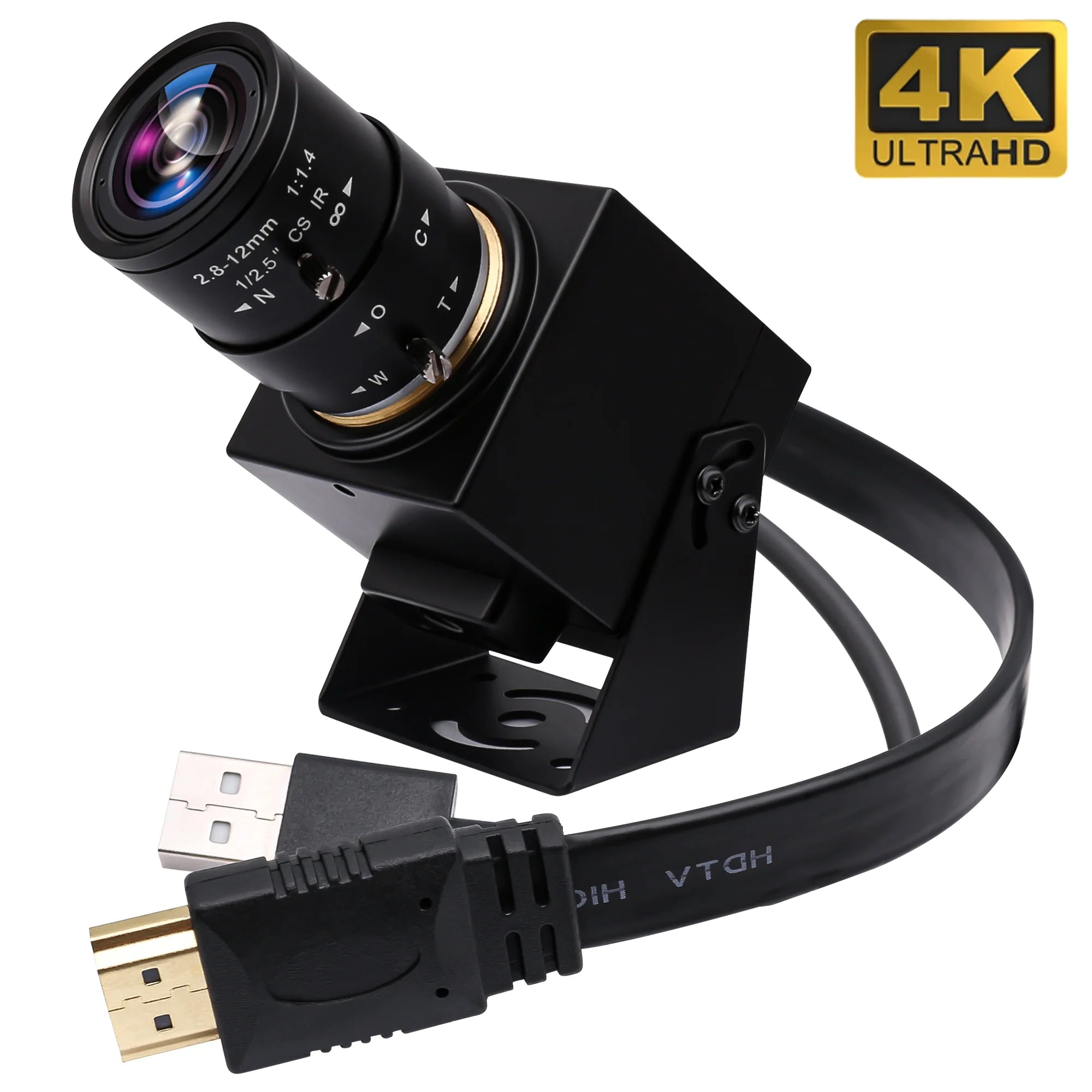

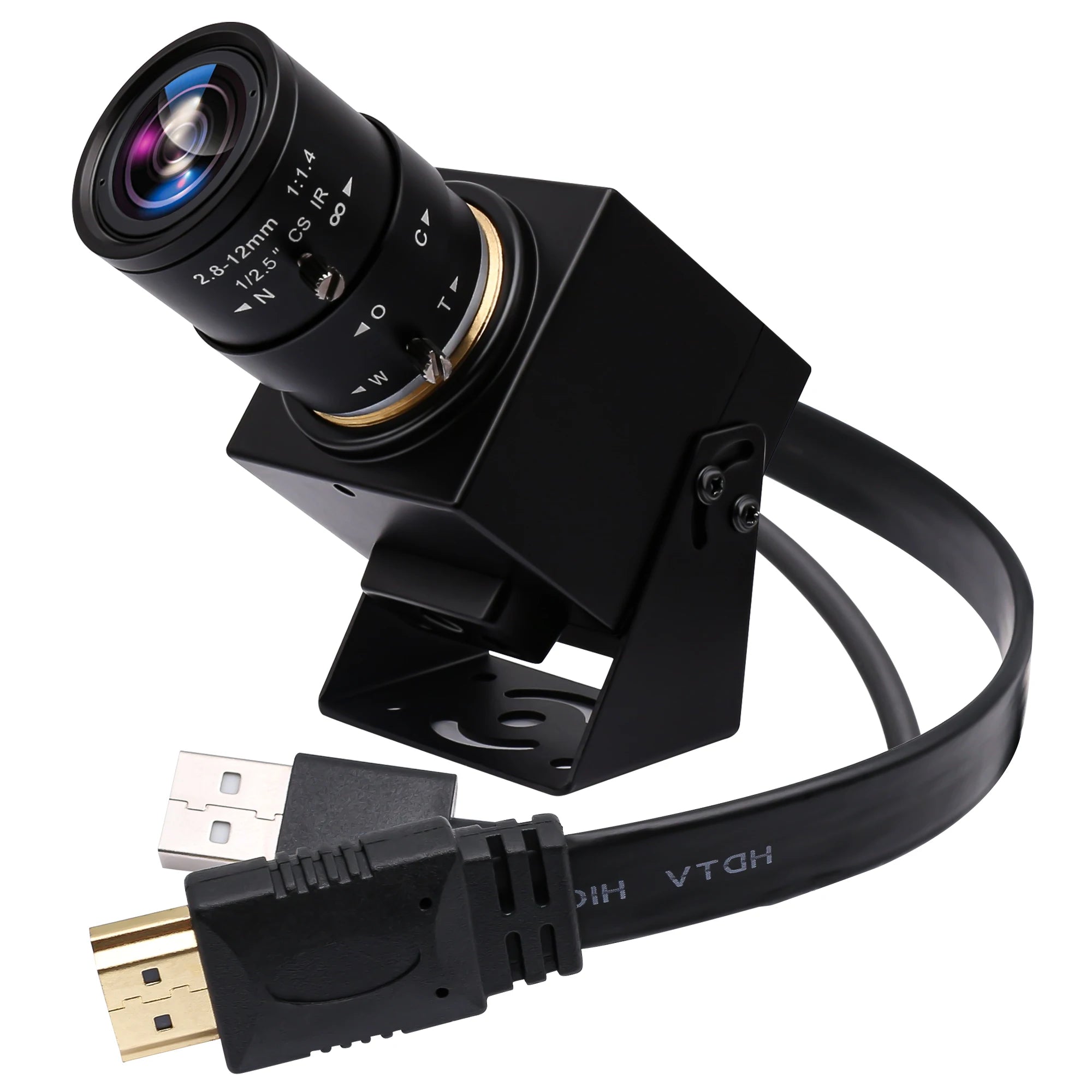

This 4K ELP-USB4KCAM01H USB HDMI Camera Module is a New member of ELP Cameras Family in 2023. It adopt 1/2.8" IMX415 Color CMOS sensor. With powerful H.265 Video Compression& H.265 Video format, provides you Ultra Smooth Uploading Experience. It can achieve Ultra HD 3840x2160 30fps,also Full HD 1080P 30fps Video Output. Support Type C and HDMI Dual Output simultaneously. With 2.8-12mm or 5-50mm Manual focus zoom Lens, enable 2X digital Zoom and 4X or 10X optic Zoom for super clear details images.
1) 1) IMX415 Sensor：4K USB HDMI Camera adopt 1/2.8" IMX415 Color CMOS Image Sensor.

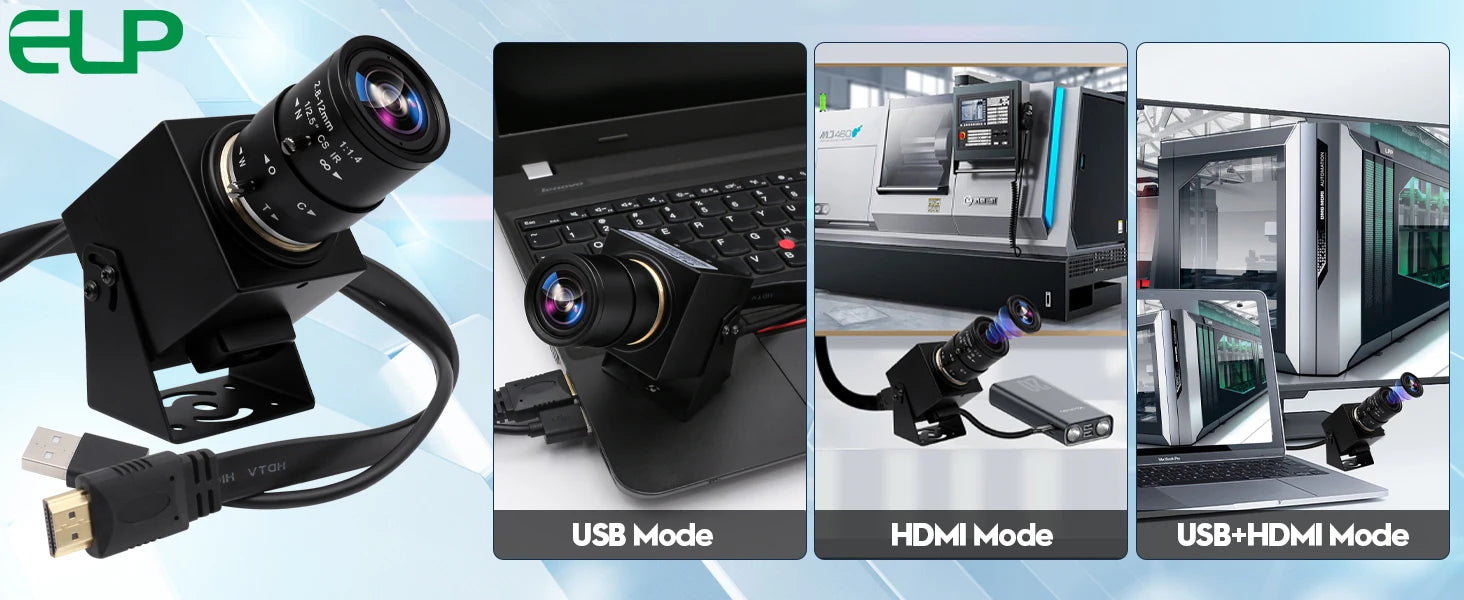

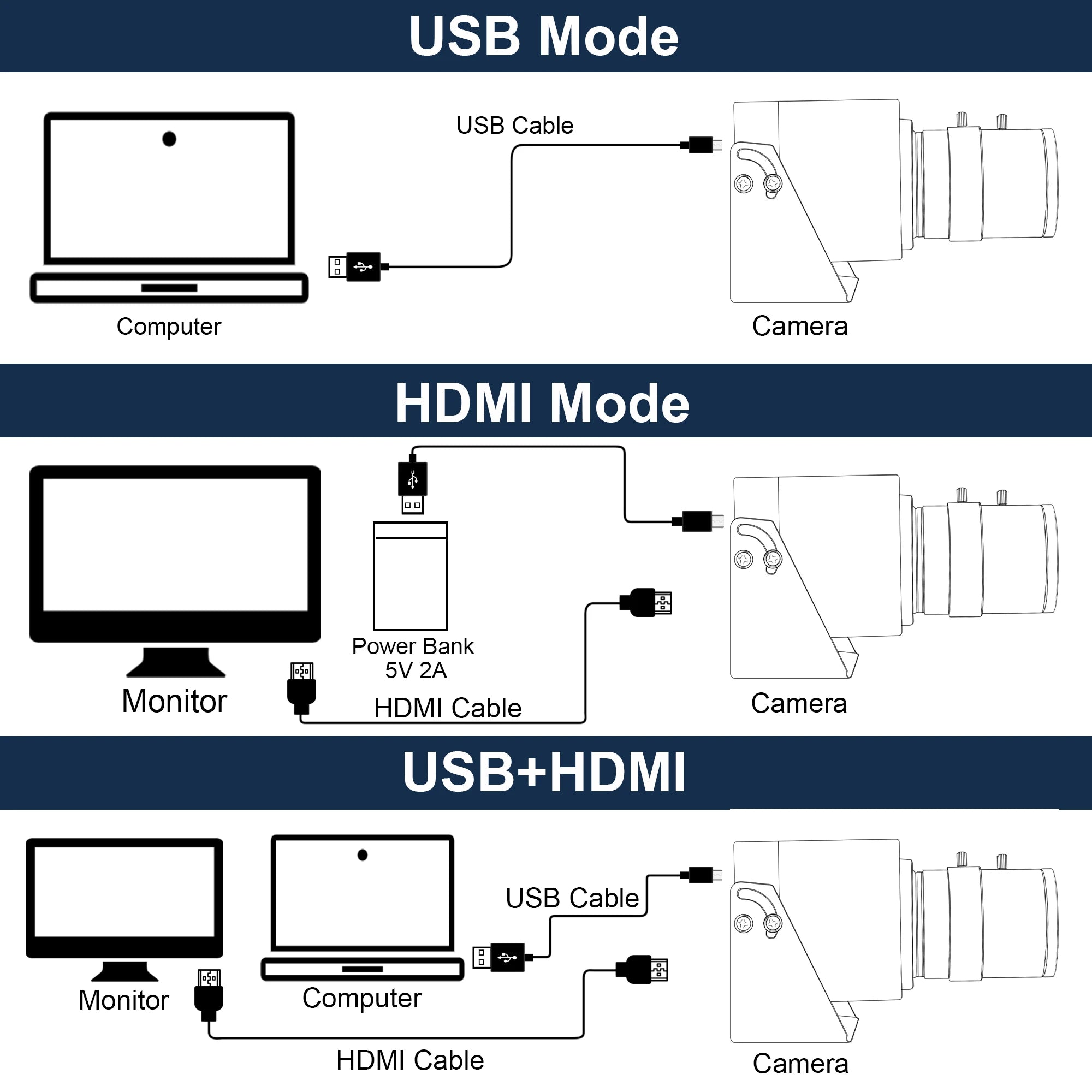

2) 3 Display Modes：USB mode / HDMI mode / USB & HDMI mode simultaneously display.

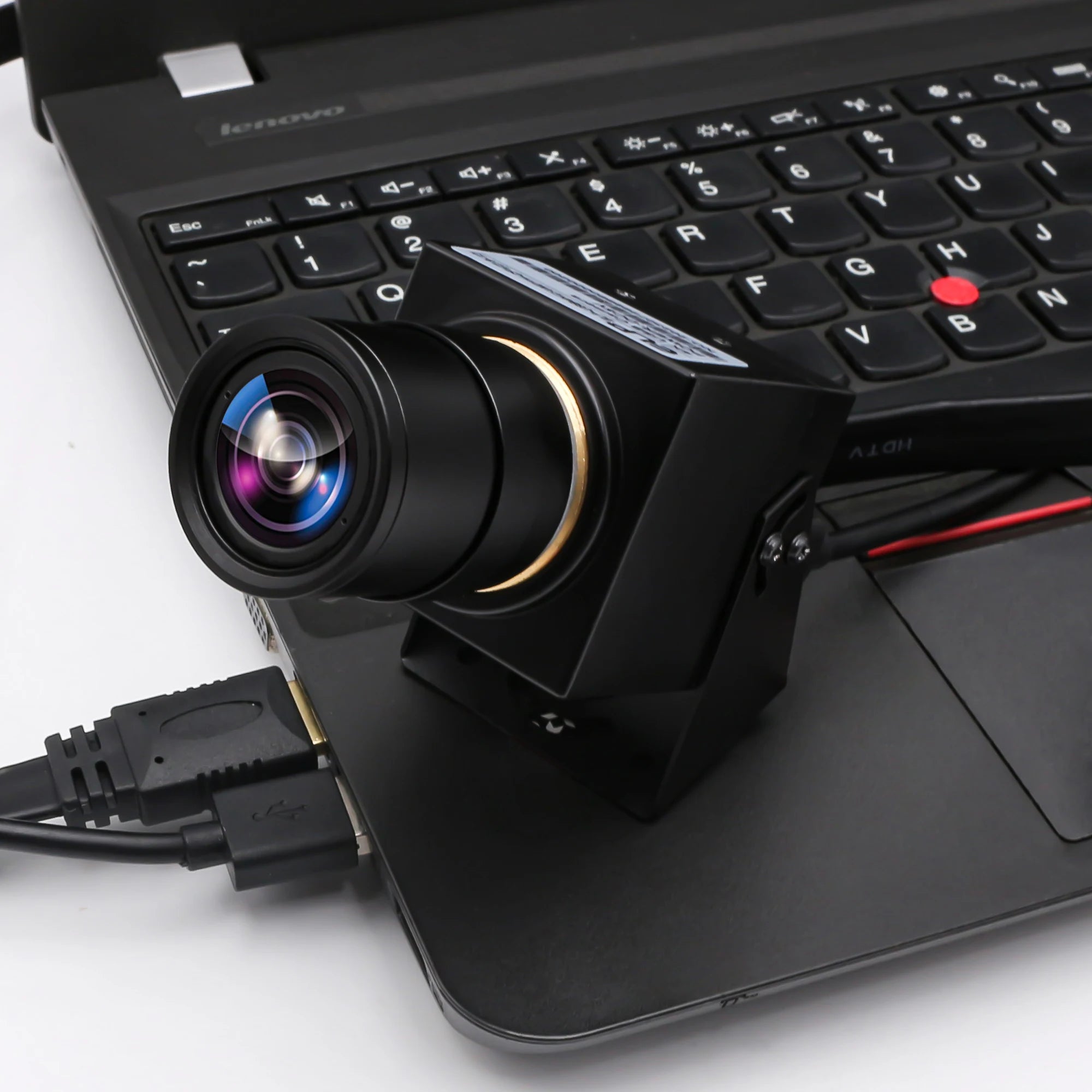

3) USB and HDMI simultaneously output：4K USB & HDMI Camera, USB plug to laptop,meantime HDMI connect to the monitor ,two screen display simultaneously.
4) High Definition 4K & High Frame Rate 30fps：Ultra HD Camera 4K, Max resolution 3840(H) x2160(V), can drive 3840x2160 30fps at H.265 /H.264/ MJPEG .
5) Compression format：USB Camera support 4 types of compress format H.265/H.264/MJPEG/YUY2 optional.

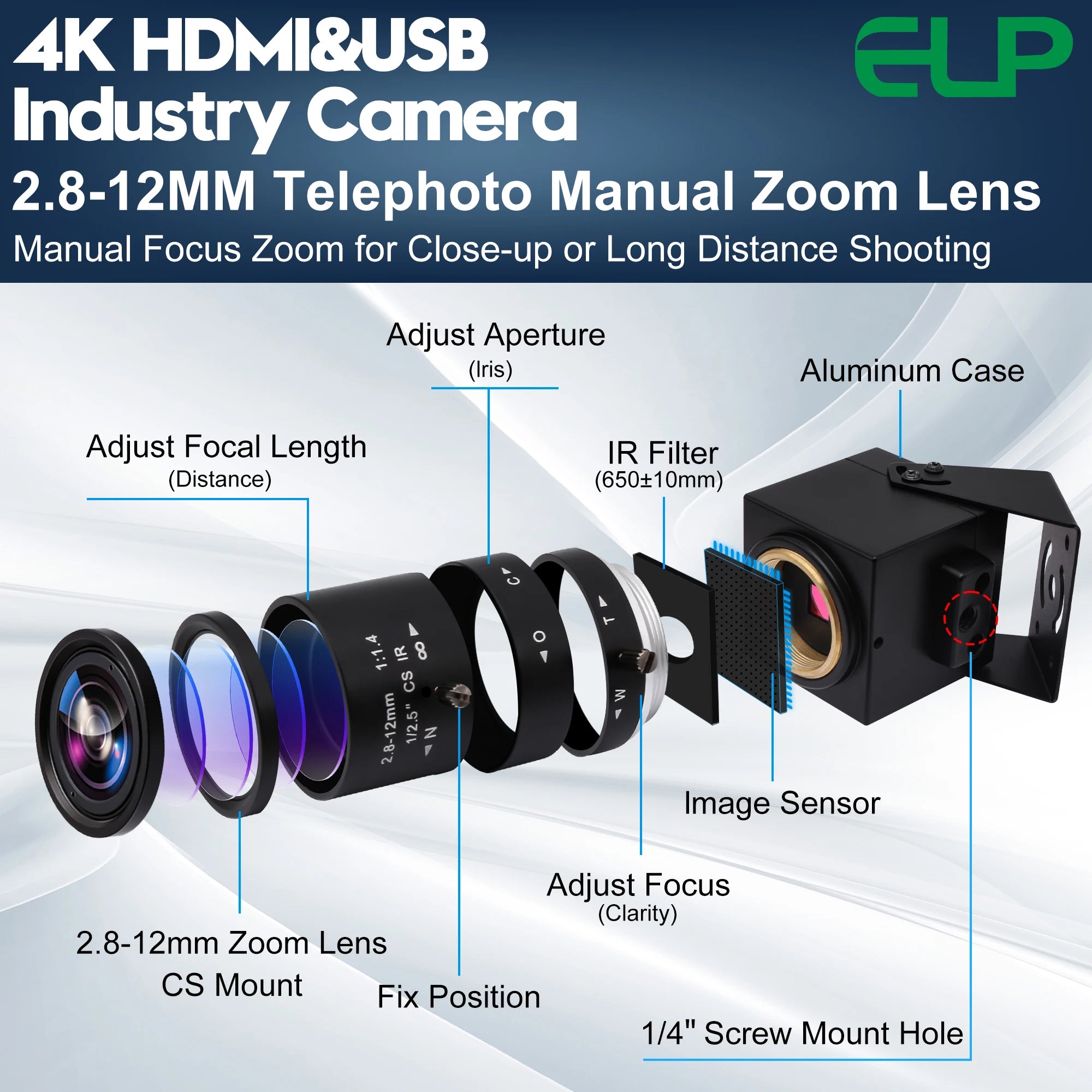

6) Optical Zoom Lens：Wide CS Mount varifocal zoom lens, 2.8-12mm zoom 4x, 5-50mm zoom 10x, manually adjust focus, clarity, aperture.
7) Digital Zoom：Support 2X digital Zoom for super clear details images.
8) UVC Compliant Plug&Play：Just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed or with HDMI cable to motitor for display directly
9) Adjustable Parameters：Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Compensation, Exposure
10) Support OS：Widely works with most operating system, include WinXP/Vista/Win7/Win8 /Win10/Win11etc.Linux with UVC (above linux-2.6.26). MAC-OS X 10.4.8 or above/Android 4.0 or above with UVC/Raspberry Pi.
Model |
ELP-USB4KCAM01H-CFV(2.8-12) ( 2.8-12mm varifocus lens) ELP-USB4KCAM01H-CFV(5-50Y) ( 5-50mm varifocus lens) ELP-USB4KCAM01H-CFV(3.6-10) ( 3.6-10mm varifocus lens) ELP-USB4KCAM01H-CFV (No lens) |
Sensor |
1/2.8” IMX415 |
Max Resolution |
3840(H)*2160(V) |
Sensitivity |
0.65V/lux-sec@550nm |
Pixel Size |
1.45µm x 1.45µm |
Video Compression |
MJPEG / YUY2(YUYV) / H.264 / H.265 |
Resolution & Frame rate |
3840x2160 MJPEG 30fps/ H.264 30fps/ H.265 30fps 2560x1440 MJPEG 30fps/ H.264 30fps/ H.265 30fps 1920x1080 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 5fps 1280x720 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 10fps 1024x576 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 15fps 960x540 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 15fps 640x480 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 30fps 640x360 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 30fps |
Central Definition |
1000LW/PH(Center) |
S/N Ratio |
30dB |
Min illumination |
0.2 Lux |
Shutter Type |
Electronic Rolling Shutter/ Frame Exposure |
Connecting Port Type |
USB 2.0 Interface &HDMI v1.4 Interface |
AEC |
Support |
AWB |
Support |
AGC |
Support |
Adjustable Parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Compensation, Exposure |
Lens Parameter |
CS Mount vari-focus lens, 2.8-12mm ,3.6-12mm, 5-50mm optional |
Power Supply & Interface |

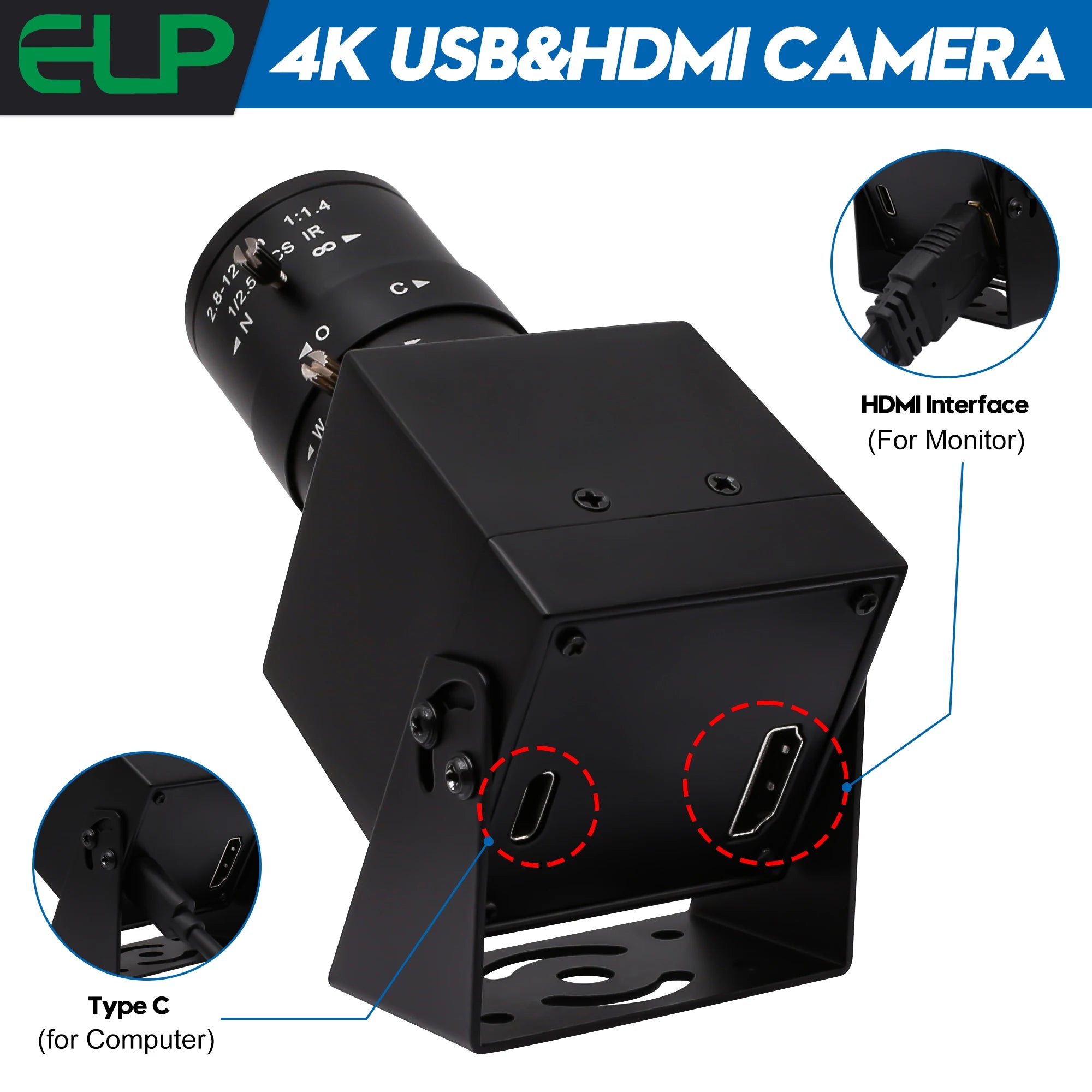

USB Type-C Power Supply, Type-C & HDMI Display Simultaneous |
Operating Voltage |
DC 5V |
Working Current |
480-500mA |
Dimension |
Double-deck, 38mm x 38mm |
Storage Temperature |
-20°C to 85°C |
Working Temperature |
-10°C to 70°C |
USB Cable |
2 pieces cables (1pcs 1.2m cable with Type-C port, 1pcs 1.5m cable with HDMI port) |
Operating System Request |
Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC MAC-OSX10.4.8 or later, Android5.x or above |
"HDMI" stands for High-Definition Multimedia Interface.It allows for the transmission of crisp, clear visuals; It is a digital transmission, so no loss of quality;It supports a wide range of resolutions and refresh rates, including 1080p, 4K, and even 8K resolutions, as well as various frame rates for smooth video playback and gaming.Except these advantages, it also has wide compatibility and great versatility,simply setup and reduces cable clitter.HDMI provides a seamless way to enjoy high-quality multimedia contentacross different devices.
H.265 is the successor to the previous H.264 standard. H.265 was designed to improve video compression efficiency and reduce the amount of data needed to transmit or store high-quality video content.H.265-encoded videos can achieve the same video quality at a lower bit rate or achieve higher video quality at the same bit rate compared to H.264-encoded videos. This is especially important for high-resolution content like 4K and 8K videos.

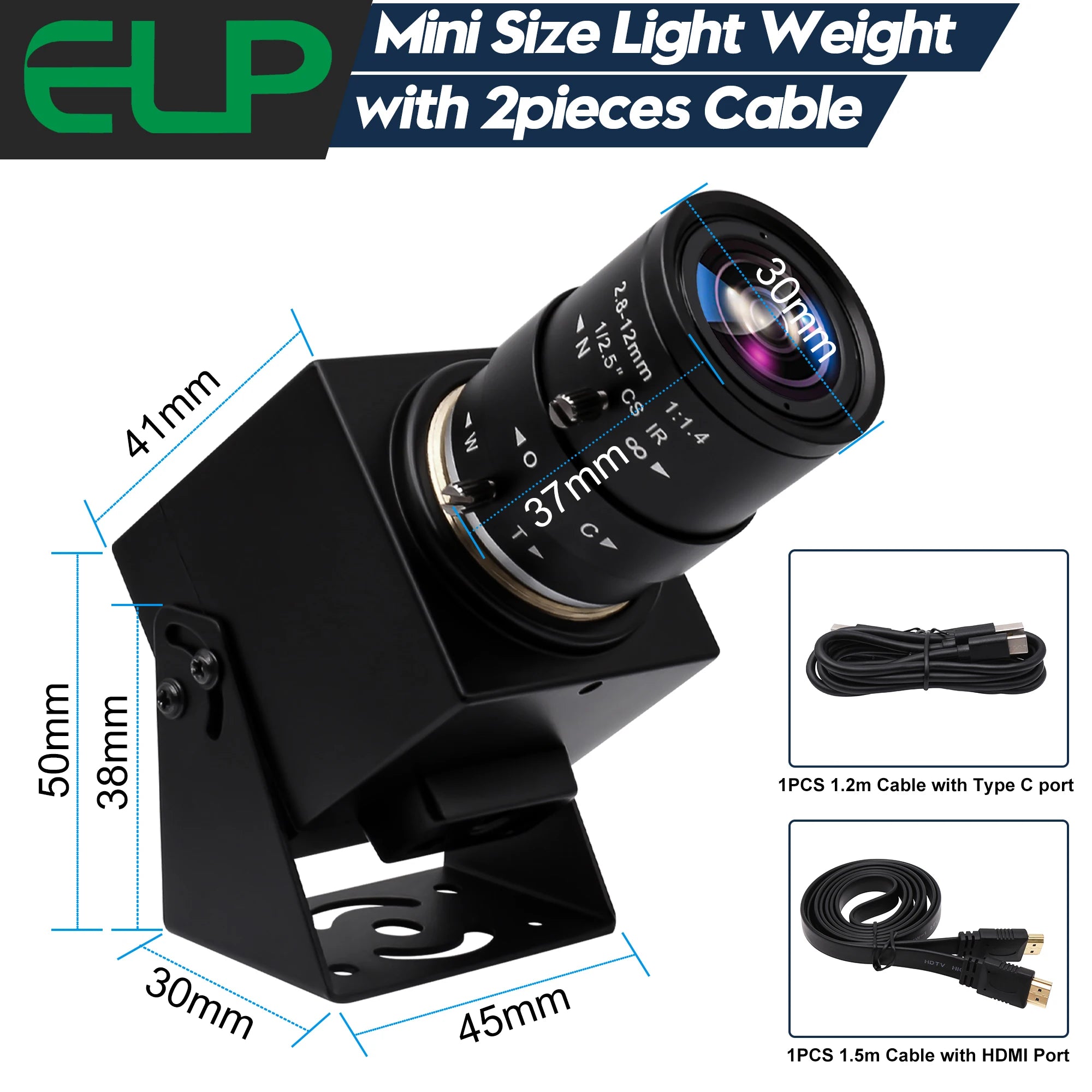

ELP-USB4KCAM01H-CFV(2.8-12) equipped 2 pieces cable: 1.2m cable with USB port + 1.5m cable with HDMI port
-- 4K Ultra HD Webcam High frame rate 30fps @ 3840x2160 H.264 CAMERA
-- 4k Industrial camera，telephoto microscope camera
-- 4X Optical Zoom lens in 4K Camera make your video footage super clear .
-- Besides the standard H.264/ MJPEG/ YUY2 compress format, powerfull H.264 also support .
-- 4K Camera support 3 connect mode: USB Mode/ HDMI Mode/ USB+HDMI Simultaneous mode.
-- USB Camera free driver，just plug and play in most computer，pc，laptop ,device
FOR PC:
* Support windows,linux,mac,Android,raspberry Pi
* Very easy to use,UVC compliant,free driver,just plug in and go.
FOR RASPBERRY PI
* It can work with already preinstalled camera software instead of builtin camera.
* Support Android development board,Raspberry Pi development board,Jetson Nano,etc.
Applications
1: ATM,Kiosk,POS,TV box 2: advertising cameras 3: one camera 4: Smart TV built-in camera
5: Construction Equipment 6: Banking equipment 7: body switch 8: Scanner
9: a mobile terminal device 10: Medical diagnostic image acquisition 11: fingerprints, palm prints image acquisition
12:video door phone 13:HD surveillance

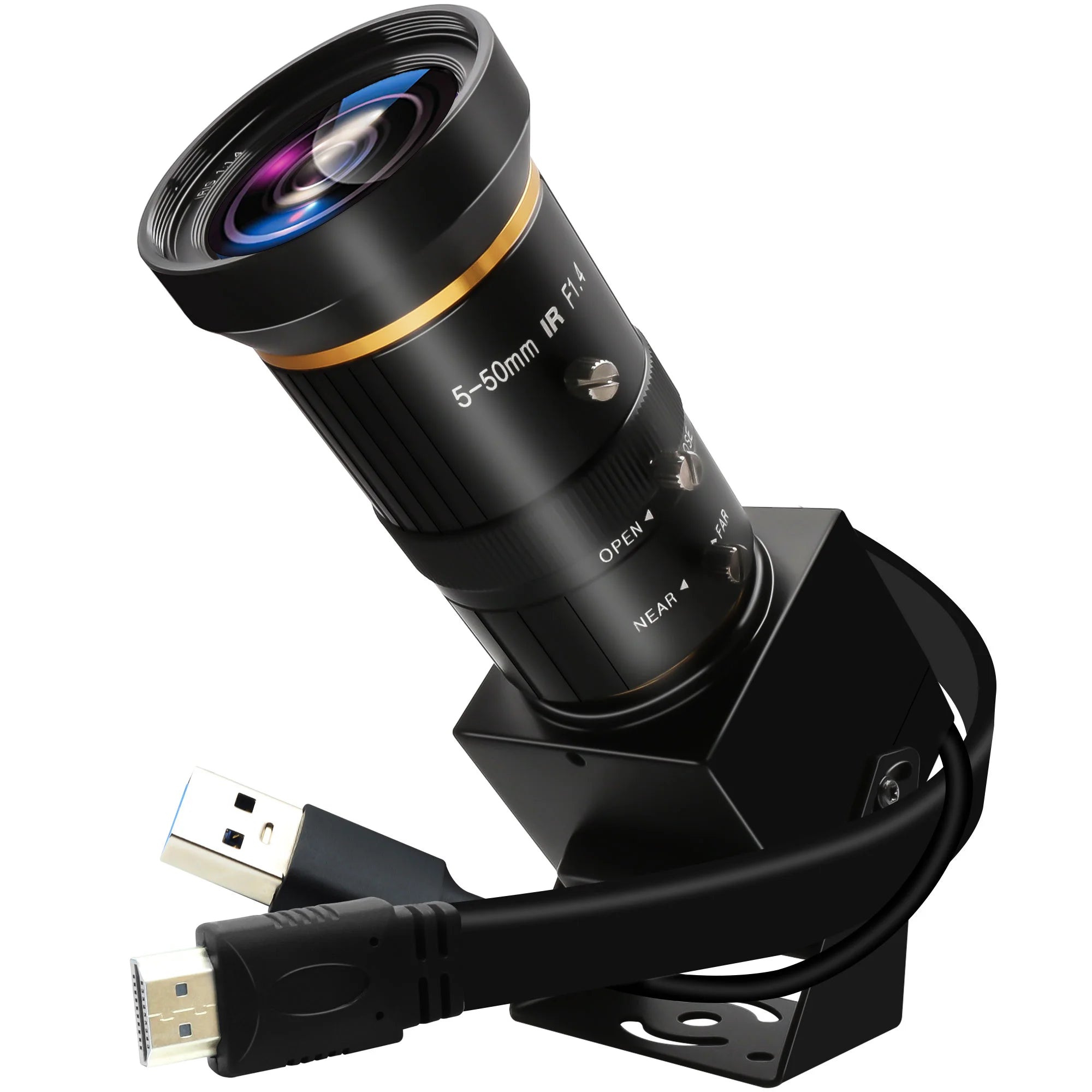

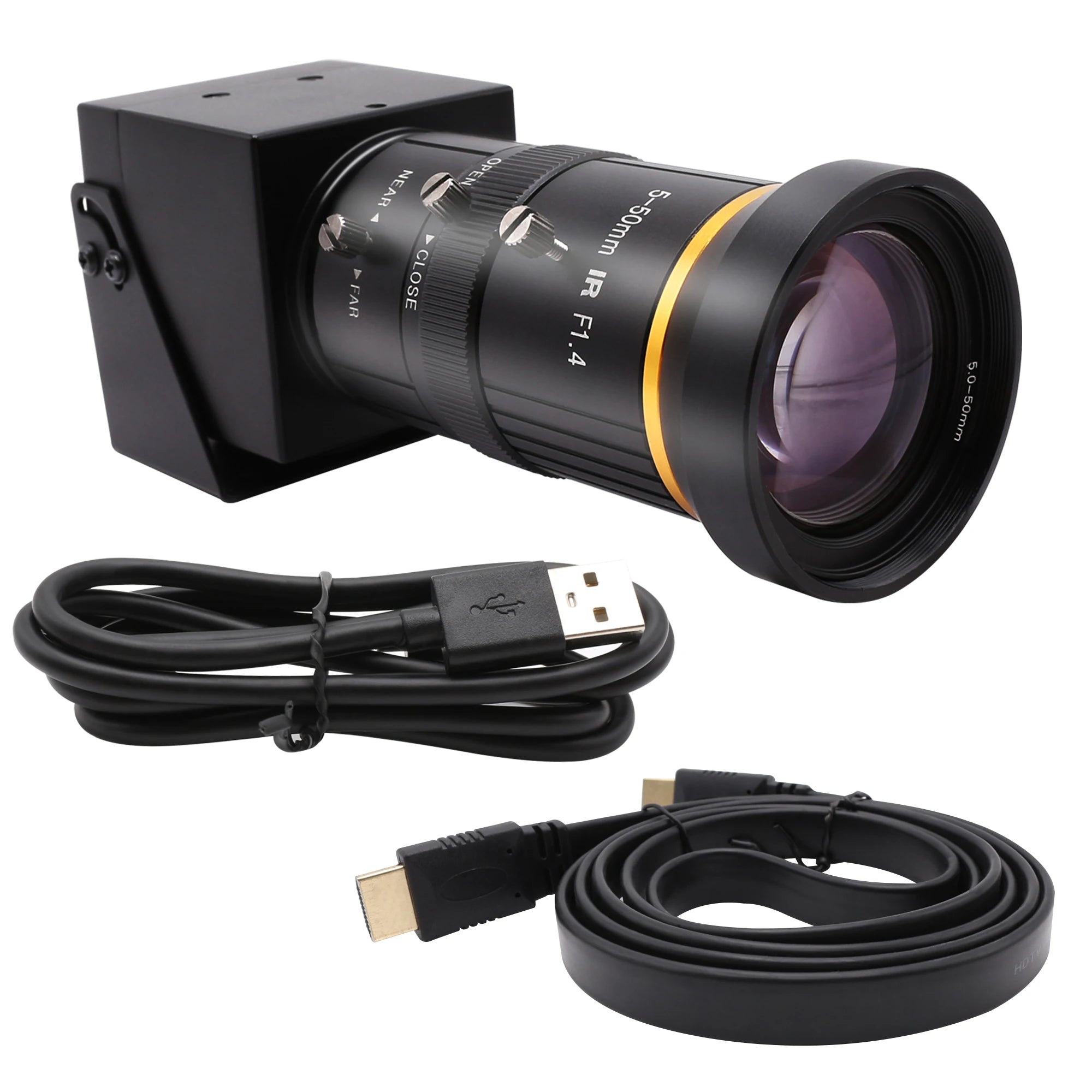

ELP-USB4KCAM01H-CFV(5-50Y) with 5-50mm varifocus lens

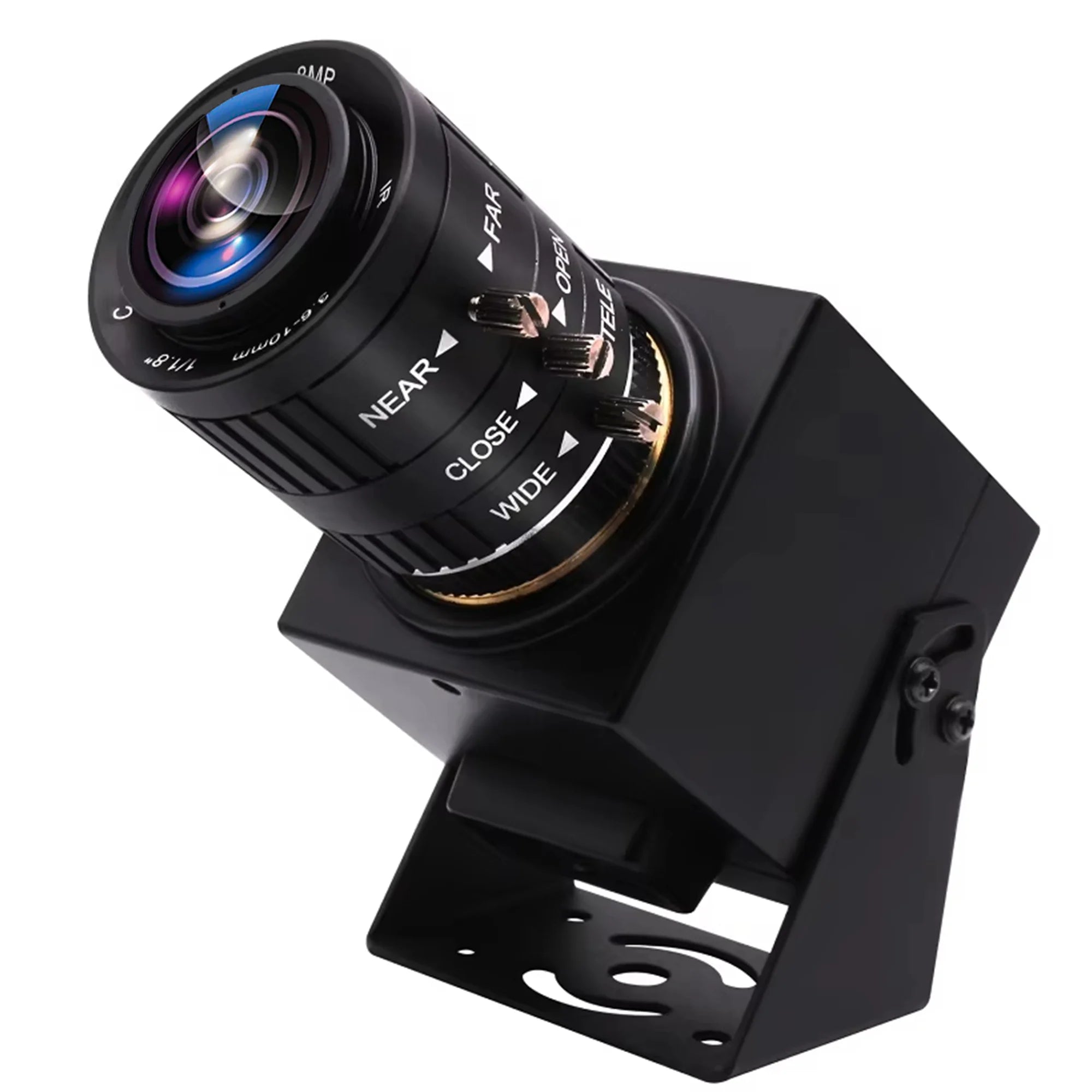

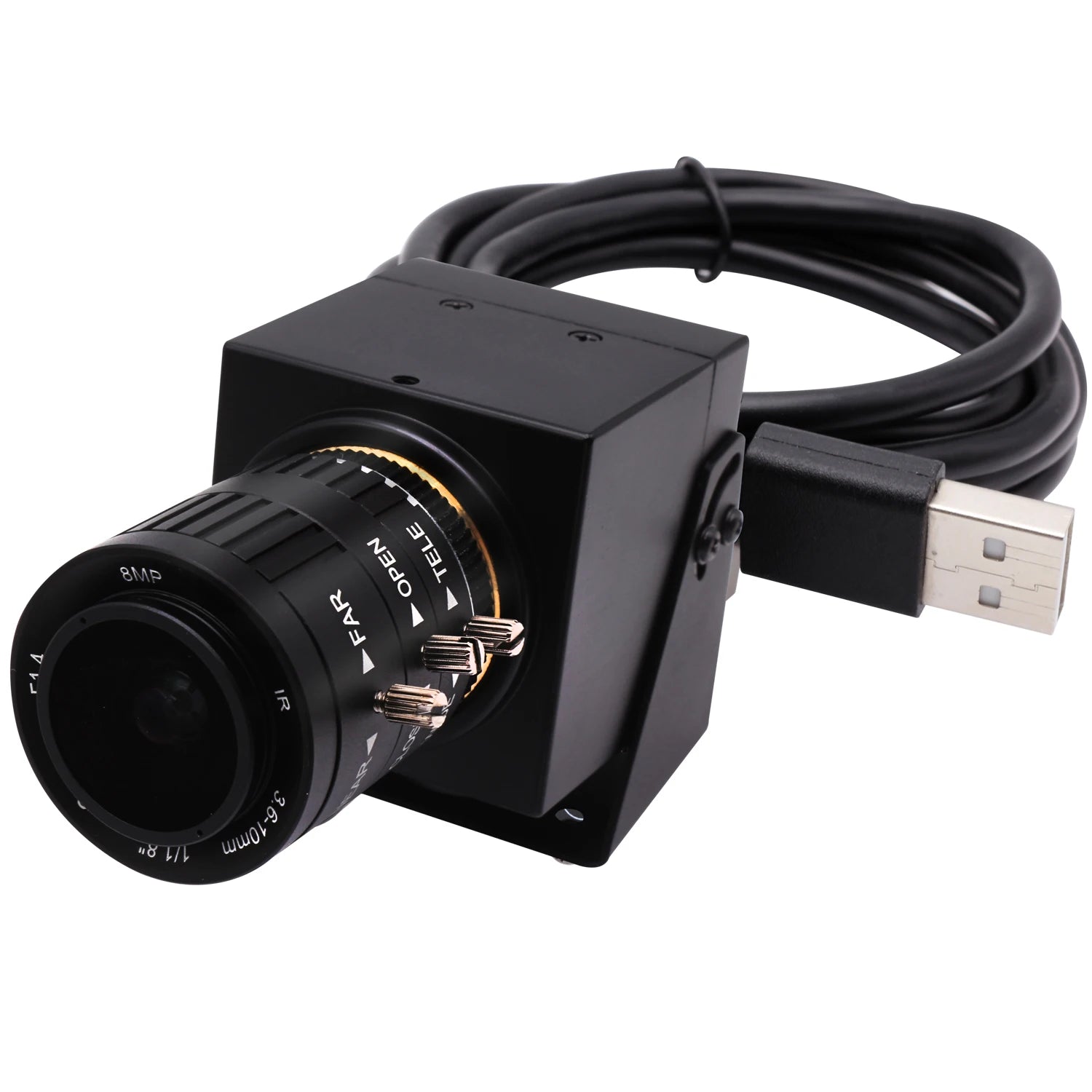

ELP-USB4KCAM01H-CFV(3.6-10) with 3.6-10mm varifocus CS lens

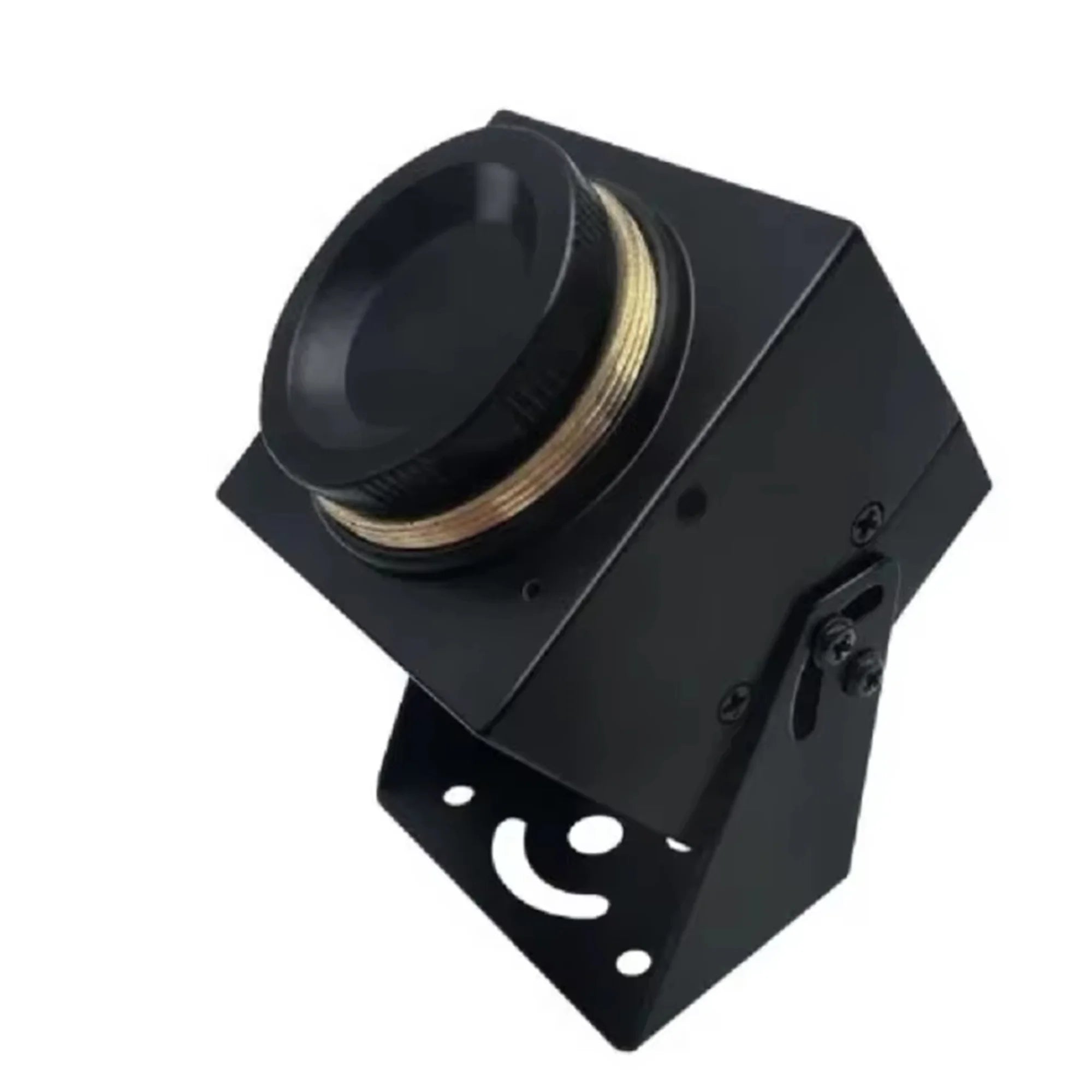

ELP-USB4KCAM01H-CFV (No lens)
